Elitech Tlog 100EC Temperature Datalogger
Reusable Ultra Low and High Temperature Recorder with External Sensor
IP65
The Tlog 100EC is a high-precision Reusable Temperature Datalogger with high measurement accuracy and good sealing performance. It has an LCD screen and an anti-accidental touch sinking button design. This ordinary USB Temperature Datalogger with external ultra-low temperature probes. PDF reports can be automatically generated, and reports can also be exported through data center software. It supports 32,000 sets of storage and 180 days of battery life. Widely used in refrigerated trucks, refrigerated boxes, cool cabinets, medical cabinets, laboratories and other scenarios.
Features:
- High-precision sensor: imported from Sensirion, SHT31 top sensor, original precise adjustment
- Nano-scale packaging process: Nano-scale PTFE film is used to ensure the performance of the sensor while protecting the sensor from liquid and dust contamination
- New air cavity design: based on air flow, the air cavity design maintains the best thermal coupling with the surrounding environment and quickly senses the actual temperature of the environment

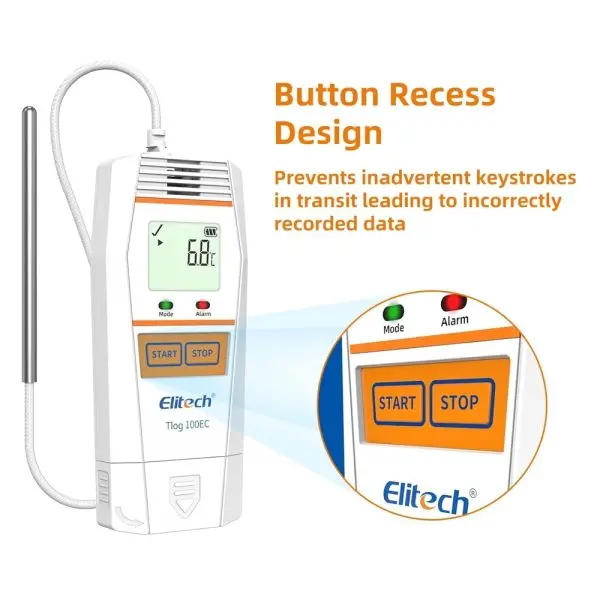

- Button groove design: to prevent bumps in the transportation of goods that cause the goods to squeeze the buttons and cause misoperation
- Safety and security: in line with the US FDA, UN38.0 NIST CE certification standards, traceability
Specifications:
- Sensor Type: External temperature sensors.
- Temperature
- Range: -100℃~+150℃ (-121℉~302℉)
- Accuracy: ±0.3℃ (-20℃~40℃) ; ±0.5℃(-50℃~+85℃); ±1℃(-100℃~+150℃); ±2℃(Other)
- Resolution: 0.1℃ / 0.1℉
- Sensor Cable Material: Teflon (able to withstand low and high temperature)
- Operation Temperature: -30℃~70℃ (-22℉~158℉)

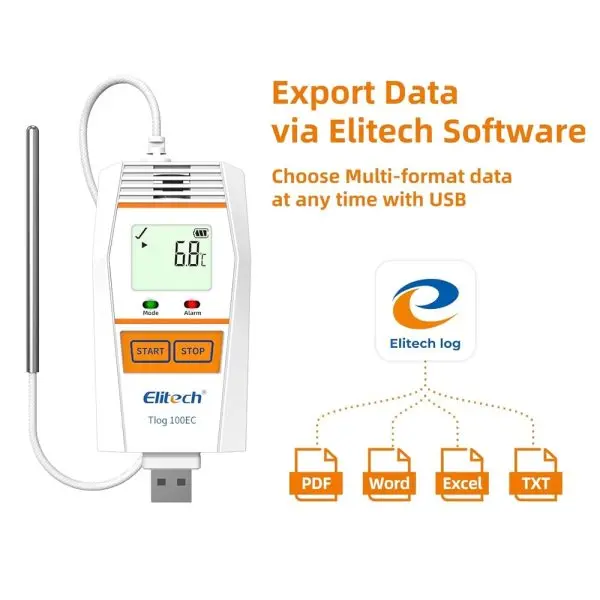

- Export Data
- Software: Eligible for Mac or Windows
- Adjustment Interval: 10 sec to 24 hours
- Capacity: 32,000 points (MAX)
- Alarm Type: Single, cumulative
- Alarm Delay: 10 seconds ~ 24 hours
- Data Interface: USB port
- Report Type: PDF data report

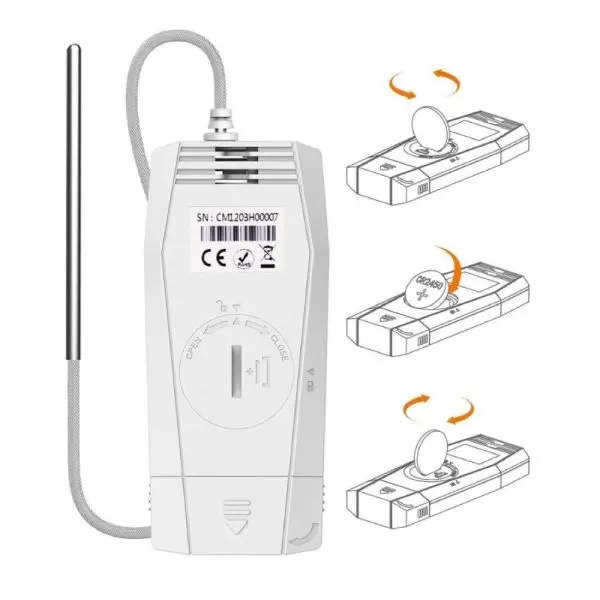

- Battery: 1 x 3V disposable lithium battery CR2450
- Battery Lift: 2 years for storage and use (25℃:10 minutes logging interval and can last 180 days)
- Protection Levels: IP65
- Dimensions: Size: 97mm x 43mm x 12.5mm (LxWxH)
- Weight: 70 grams (Battery included)
Package includes:
- 1 x Tlog-10oEC Temperature Datalogger
- 1 x User Manual
- 1 x Calibration Certificate
- 1 x 3.0V Lithium Battery
Note: The battery is not rechargeable.
