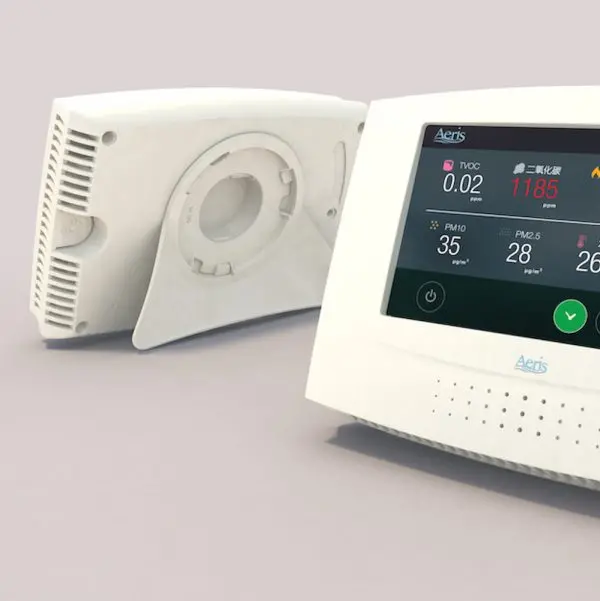

iAeris 1
IAQ Monitoring System
INDOOR AIR QUALITY MONITOR
(Model No.: iAeris 1X)

Made in Taiwan

Descriptions

The iAeris is the real time monitor of multiple indoor air quality indicator. This monitor can provide the status of temperature, humidity, CO2, CO, particulate matter (PM10), PM2.5, total volatile Organic compound (TVOC ), formaldehyde (HCHO) and Ozone(O3) at the same time. The 7” touch TFTLCD panel can display the air quality directly and provide a simple and easy to use interface. The BLE4.0 and WiFi let the measured data can upload to the internet, the current and historical data can be accessed by web.

Applications

• Living room
• Lobby
• Hospital
• School
• Smart home
• Bedroom
• Office
• Station
• Department store
• Internet of Things

Sensors Specifications:

• Temperature
  • Range: -40℃~125℃
  • Resolution: 0.1℃
  • Operating Principle: CMOSems
  • Response time: 30sec
  • Warmup time: 50sec
• Relative Humidity
  • Range: 0~100%RH
  • Resolution: 0.1%
  • Operating Principle: CMOSems
  • Response time: 30sec
  • Warmup time: 50sec
• Carbon Dioxide (CO₂)
  • Range: 0 ~ 5,000ppm
  • Resolution: 1 ppm
  • Operating Principle: NDIR
  • Response time: 120sec
  • Warmup time: 60sec
• Carbon Monoxide (CO)
  • Range: 0 ~ 1,000ppm
  • Resolution: 0.1 ppm
  • Operating Principle: Electrochemistry
  • Response time: 60sec
  • Warmup time: 60sec
• Dust (PM_2.5)
  • Range: 1 to 1000μg/m³
  • Resolution: 1 μg/m³
  • Operating Principle: Optics
  • Response time: 10sec
  • Warmup time: 300sec
• Dust (PM₁₀)
  • Range: 1 to 1000μg/m³
  • Resolution: 1 μg/m³
  • Operating Principle: Optics
  • Response time: 10sec
  • Warmup time: 300sec
• Airbone Chemicals (TVOCs)
  • Range: 0.13 ~ 2.5 ppm
  • Resolution: 0.01 ppm
  • Operating Principle: MEMS
  • Response time: 10sec
  • Warmup time: 300sec
• Formaldehyde (HCHO)
  • Range: 0.01 ~ 5ppm
  • Resolution: 0.01 ppm
  • Operating Principle: Electrochemistry
  • Response time: 30sec
  • Warmup time: 300sec
• Ozone (O₃)
  • Range: 0 ~ 5ppm
  • Resolution: 0.01 ppm
  • Operating Principle: Electrochemistry
  • Response time: 60sec
  • Warmup time: 600sec

* You have the choice to select the parameters you wanted to monitor. The basic model come with Temperature, Humidity and CO2)

General Specifications:

• Sampling method: real time
• Display: 7 inches colour TFT with touch panel
• Data interfaces:
  • RS485(Modbus-RTU) (option)
  • WiFi(Modbus-TCP & JSON) (option)
  • BLE4.0 (option)
  • 2 sets of Dry Contact
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Operating Humidity: < 95%RH, non-condensing
• Power: 5V DC, 2.0A
• Size: 233mm(L) x 159mm(W) x 46mm(H)
