Milesight
LoRaWan Temperature Humidity Sensor
using LoRaWAN Technology
(Model No. EM300-TH-915M)
EM300-TH is a compact environment monitoring sensor for measurement of temperature and humidity and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM300-TH LoRaWan temperature humidity sensor can work up to 5 years with 4000 mAh battery. Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.
EM300-TH is widely used for both indoor and outdoor applications such as offices, hospitals, factories, greenhouses, etc.
Features:
- Embedded with Sensirion high-precision sensor chip

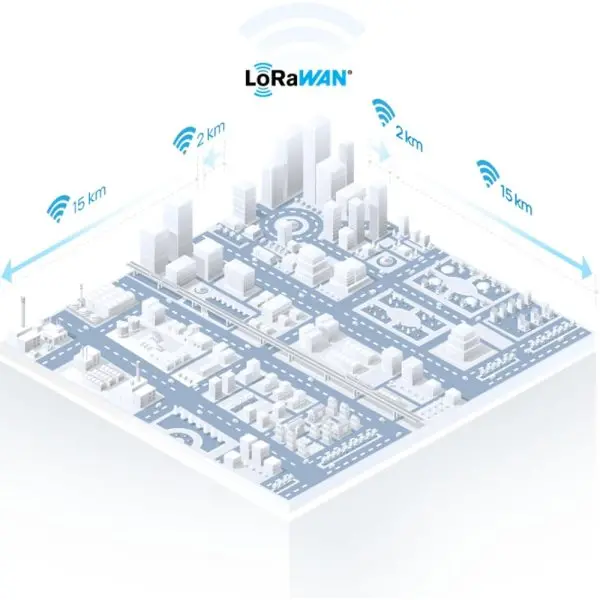

- Ultra-wide-distance transmission up to line of sight of 10km

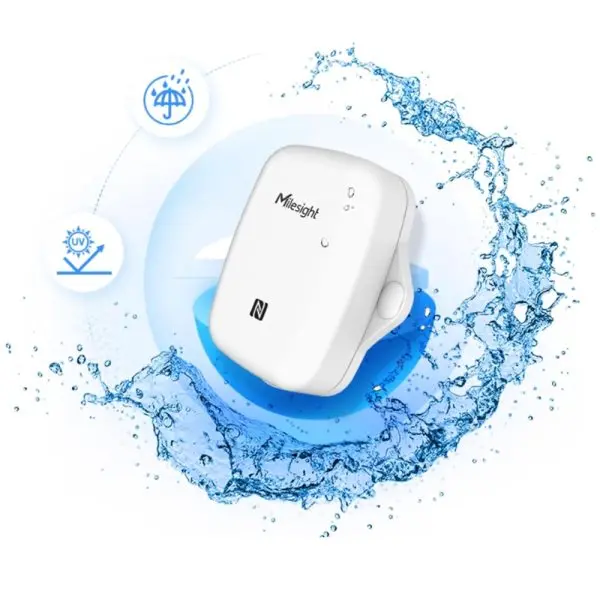

- IP67 UV-resistant and waterproof enclosure for harsh environment applications
- Built-in 4000 mAh replaceable battery and works for 5 years without replacement
- Equipped with NFC for easily configuration
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud solution
Specifications:
- Wireless Transmission
- Technology: LoRAWAN
- Frequency: AS923
- Tx Power: 20 dBm (915MHz)
- Sensitivity: -137dBm @300bps
- Mode: OTAA/ABP Class A
- Temperature
- Range: -30 to +70°C
- Resolution: 0.1°C
- Accuracy: ±0.3°C (0 to 70°C), ±0.6°C (-20 to 0°C)
- Humidity
- Range: 0 to 100%RH
- Resolution: 0.5%RH
- Accuracy: ±3%RH (10% to 90%RH), ±5%RH (<10%RH and >90%RH)
- Operation
- Power On & Off: NFC, Power Button (Internal)
- Configuration: NFC Configuration via Mobile App
- Physical Characteristics
- Power Supply: 1 x 4000 mAh ER18505 Li-SOCI2 (extendable to 2 batteries)
- Battery Life*: 10 Years based on 10 mins interval
- Operation Temperature: -30°C to +70°C
- Relative Humidity: 0% to 100% (non-condensing)
- Ingress Protection: IP67
- Installation: Wall Mounting
- Size: 88.5 x 85.3 x 27 mm (3.48 x 3.36 x 1.06 in)
- Weight: 95.6g (with 1 battery)
- Approvals
- Regulatory: CE, FCC, RoHs
* Tested under laboratory conditions and for guideline purposes only.
Package includes:
- 1 x EM300-TH LoRaWan Temperature Humidity Sensor
- 1 x 4000 mAh ER18505 Li-SOCI2 Batteries
1 Years Manufacturer Warranty – 30 Days One-to-One Exchange
