NAVIS
Wireless Anemometer with Alarm
( Model No. WINDY WR5/WS )
Made in Slovenia
Navis WR5/WS is a long range wireless anemometer with alarm. It has handheld/portable display unit and sensor suitable for both – permanent or temporary installation. Sensor with ball bearings and long life battery ensure long period without servicing. Sensor send data every 2 seconds so you have instant information about wind speed anywhere in the 500 m radius from the sensor. Each sensor has its own address so several anemometers can operate in close proximity without disturbance.
Features:
- Easy installation without running cables
- Shows all vital wind data
- Range up to 500 m
- Battery or external powered
- Long battery life
- Large, night illuminated LCD display
- Compatible with range of NAVIS wind sensors
Functions:
- Current, average and peak wind speed
- Temperature and windchill

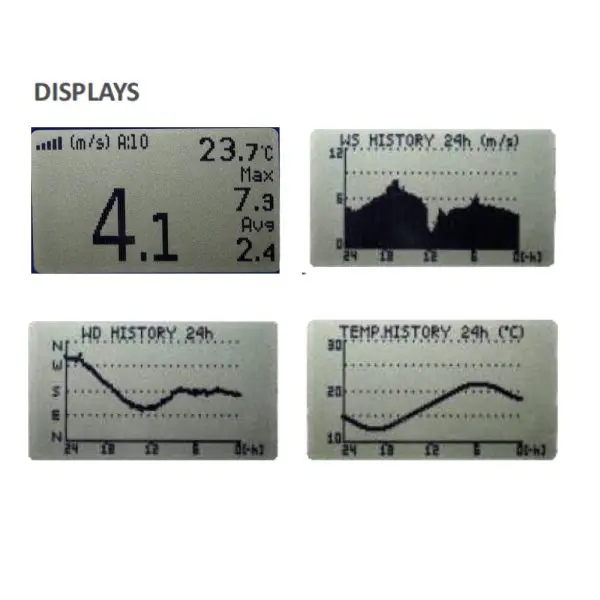

- History graphs – 24h wind speed, 24h wind direcon 24h temperature; 1,5h wind speed
- Max. wind speed sound and opcal alarm
Technical Data:
- Wind speed
- Measurement range: 0.7 m/s – 50.0 m/s
- Units of measurement: m/s, km/h, knots, mph
- Resolution: 0.1 m/s
- Accuracy: +/- 2.5 %, calibration possible in 0.5% steps
- Air Temperature
- Measurement range: -30°C…+60 °C
- Units of measurement: °C, °F
- Resolution: 0.1°C
- Accuracy: +/- 0.4°C
- Current wind speed: 0.5s, 1s or 2 seconds update, depends from sensors settings
- Averaging wind speed: selectable averaging: 1, 5 or 10 minutes
- Peak wind speed: highest recorded current wind speed since reset
- Wind speed alarm: adjustable max. alarm (red light + sound signal, 83dB/10cm)
- Temperature operating range: -10….+50 °C
- Transmission range: up to 500m (line of sight)
- Transmission frequency: 868 MHz
- Battery – sensor: 1 x 3,6 V AA Lithium battery, replaceable (included)
- Battery – display unit: 3 x 1.5V AA batteries
- Battery life – sensor: up to 4 years
- Battery life – display unit:
- up to 3500 hours (without display illumination)
- up to 1500 hours (with display illumination)
- External power supply: 5V DC
- External power connector: micro USB (adapter is not enclosed)
- Wind Speed Sensor
- Dimensions: Height 210 mm, overall diameter cup to cup 120 mm
- Material: Polyamide cups, Aluminum base
- Bearings: precision stainless steel ball bearing
- Display Unit
- Dimensions: 115 x 83 x 32 mm
- Material: ABS
- Weight: 150g
Optional Accessories:
- WS Sensor self levelling mounting assembly (Optional)
- Wind tunnel certificated version available (Optional)
Caution Note: The Navis’s products we sell in our online store are only CE certified, but not FCC certified. Therefore, it is illegally to sell in North American market (United States and Canada). Please purchase directly from North American distributor.
