UbiBot NR1 ETH Smart Network Relay WiFi 2.4GHz and Ethernet Version

UbiBot
Wireless Smart Network Relay
2.4GHz WIFI and Ethernet Version
(Model No.: NR1-ETH)

Smart Network Relay for Seamless Automation & Control WiFi/RJ45 and RS485

Descriptions

UbiBot Smart Network Relay NR1 is not just a device; it’s a leap towards intelligent and automated control in various environments. Here are its standout features:

• Versatile Control: Offers four independent relay outputs, enabling both synchronized and individual controls for diverse applications.
• High Contact Capacity: With a robust contact capacity of 250V AC/10A or 30V DC/10A, it’s built to meet extensive external load requirements.

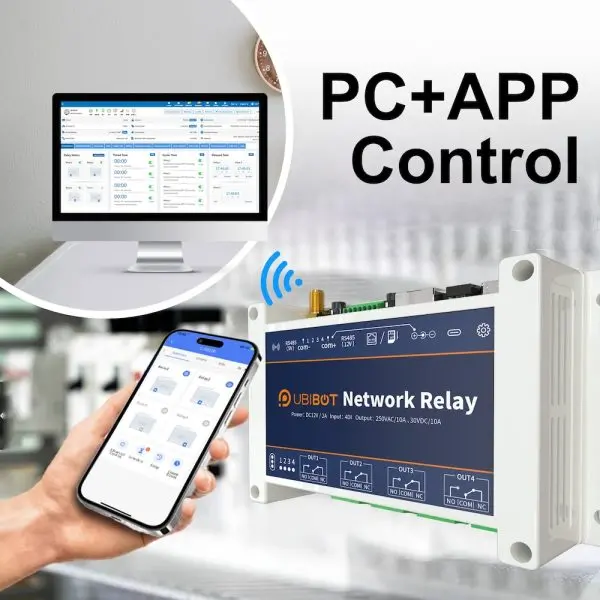

• Flexible Operation: Seamlessly supports both online and offline control modes, catering to all your intelligent control needs without compromise.
• Multiple Network Connectivity: Ensures easy and real-time device management through WiFi, RJ45, and RS485, enhancing accessibility across different setups.
• Enhanced Safety: Features user-defined safety interlock groups to prevent simultaneous operation of external devices, ensuring operational safety.
• Customizable Power Settings: Allows for the easy setting of default power-up states, maintaining operational consistency even after power failures.
• UbiBot’s NR1 stands out in the realm of smart network relay, offering unmatched control, safety, and reliability. Whether it’s for intelligent agriculture, smart factories, or secure buildings, the NR1 brings your control and automation to the next level, empowering you to monitor and manage with confidence and precision.

Features:

• Support 4-channel relay independent outputs, which can be remotely synchronized as a whole or independently controlled at a single point.
• A service life up to 100,000 times to meet external load requirements and use scenarios.
• Online control mode: you can remotely control relay operations through the UbiBot cloud platform, including opening/closing the relay, the overall synchronization or independent single-point control, timing and cycle setup, delaying tasks or defining trigger conditions through early warning rules and automation control
• External probes are supported to achieve real-time environmental monitoring and automatic power on/off according to the environmental conditions.
• Local Linkage – In conjunction with smoke sensors, water valves, access control, and other switching inputs, the local device can be connected to perform corresponding switching operations. This allows for the local linkage of all devices.
• Offline Control – The NR1 device supports the Modbus RTU protocol, allowing for offline control of 4-channel relays through an RS485 connection to a computer.
• Freely Selectable Modbus Master/Slave Mode: Able to support RS485 serial communication, master/slave mode can be selected freely. The slave mode is for default, which can be queried or controlled by the RS485 host. After switching to the host mode, it can be connected with RS485 probes to expand the product functions and realize the integration of monitoring and control.

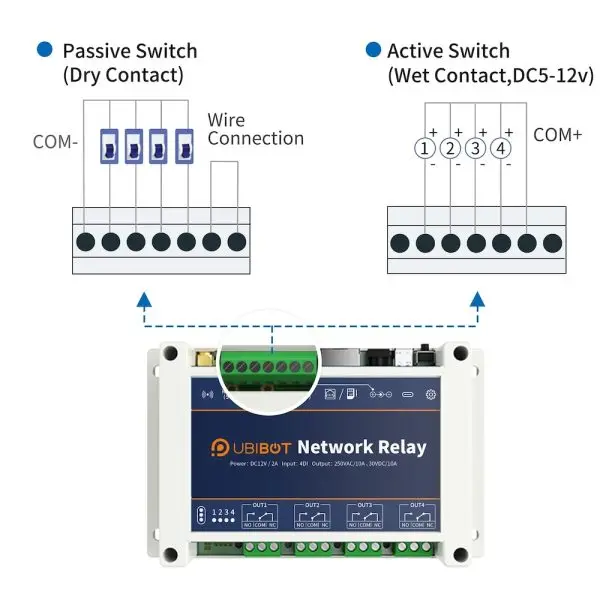

• Input Wiring – Supports four switch inputs and can be connected to wireless or active switches.
• Output Wiring – Supports normally open or normally closed operations. Various wiring methods can meet
  different output requirements.

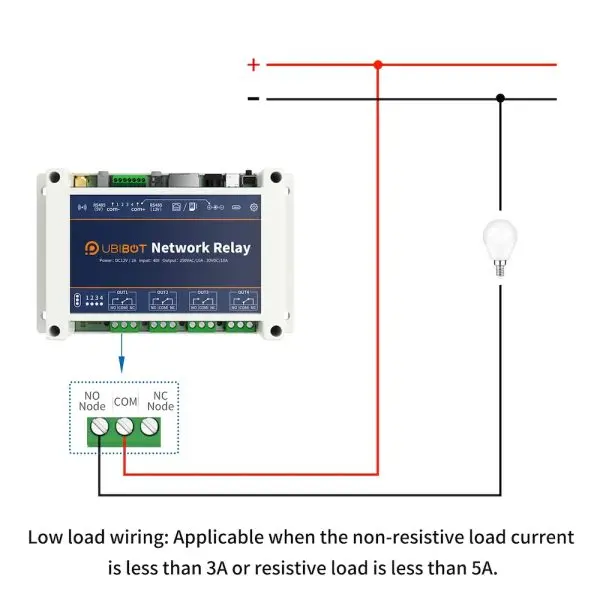

  ①Low load wiring: Applicable when the non-resistive load current is less than 3A or resistive load is less than 5A.

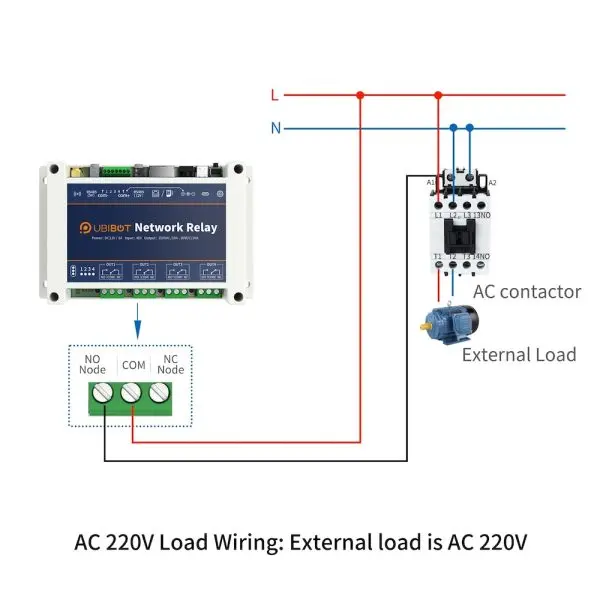

  ②AC 220V Load Wiring: External load is AC 220V .

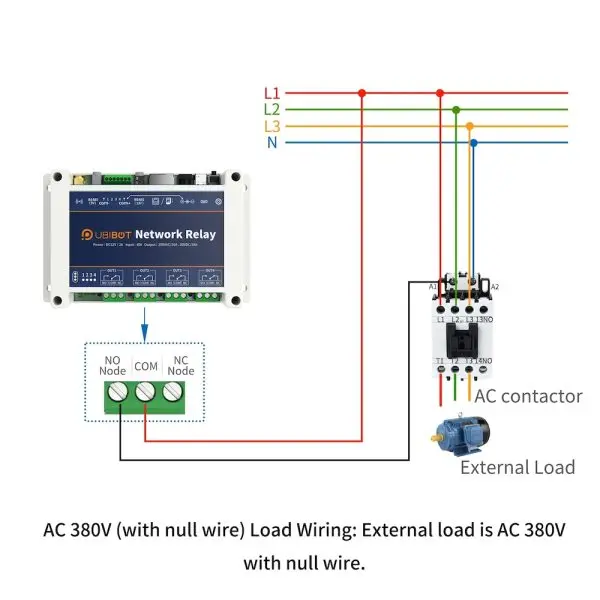

  ③AC 380V (with null wire) Load Wiring: External load is AC 380V with null wire.
• Pulse On/Off – Pulse On: The relay receives the command, turns on for a period of time, and then turn off automatically. Pulse Off: The relay receives the command, turns off for a period of time, and then turn on automatically.
• Interlock Groups – The network relays support user-defined safety interlock groups. Any one relay in the group is open while the other relays are disconnected. The safety interlock effectively prevents external devices controlled by the relay from working simultaneously, thus avoiding potential dangers. It can be applied to the protection of fans, rolling shutters, and other motors in forward and reverse motion.
• Default Power-Up State Setting – The relay output state after repowering can be set through the platform end to maintain the disconnection or closure before power failure. This prevents damage to external loads or other property loss after equipment internally reboots or power failure.
• Multiple Network Connection Modes – UbiBot NR can be connected to the UbiBot IoT cloud platform through WiFi/4G/RJ45 Ethernet cable (Depending on the specific model purchased)
• Multiple ways of receiving real-time alerts: Pulse On/Off – Pulse On: The relay receives the command, turns on for a period of time, and then turn off automatically. Pulse Off: The relay receives the command, turns off for a period of time, and then turn on automatically.
• Free App & Web Console to access and monitor real-time data remotely, no subscription fee
• Unlimited UbiBot cloud storage for historical data; free historical data export
• Working with IFTTT, Alexa, Google Assistant, Google Sheet

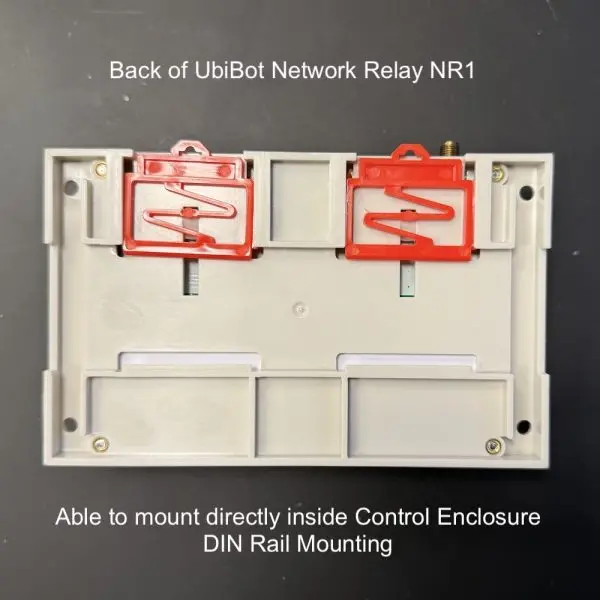

Technical Specification:

• Contact Capacity: 250V AC/10A, 30V DC/10A
• Durability: 100,000 times
• Device Input: 4-way DI (optocoupler isolated)
• Power Supply: DC 12V/2A
• Communication: WiFi 2.4GHz(1-13channels)/4G*/RJ45*/RS485
• Main Material: ABS
• Dimension: 145*90*40mm
• Working Environment: -20~60℃, 5~85％RH(no condensation)

External Probe Selection (Optional):

• UbiBot NR1 has one external probe ports for connecting external probes

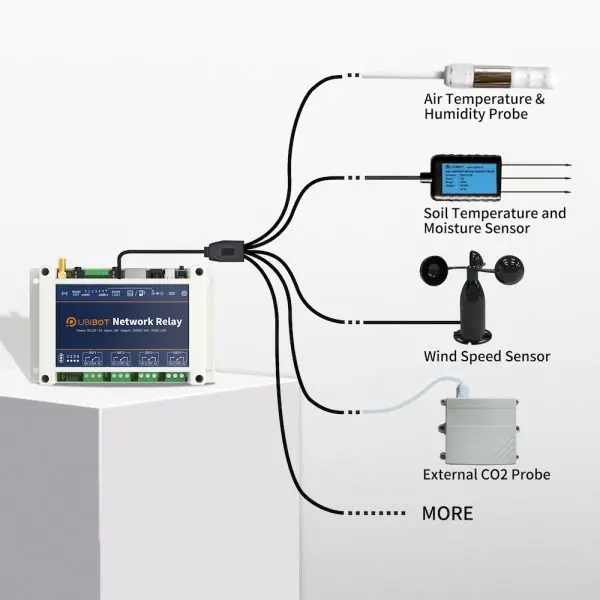

• The probe port can be used for an external DS18B20 temperature probe. Temperature range (-55 to 125 ℃) with 3 or 5 meters round cable.
• There are also compatible to others sensor probe such as TH305-B temperature and humidity probe, Soil Temperature and Moisture sensor, PT-100 temperature probe, Wind speed probe, CO2 probe, etc.

Applications

UbiBot Smart Network Relay widely used in intelligent agriculture, animal husbandry, intelligent buildings, smart home intelligent factories, and other industries that require remove, real-time control, timing management, or automation control.

• Intelligent Agriculture

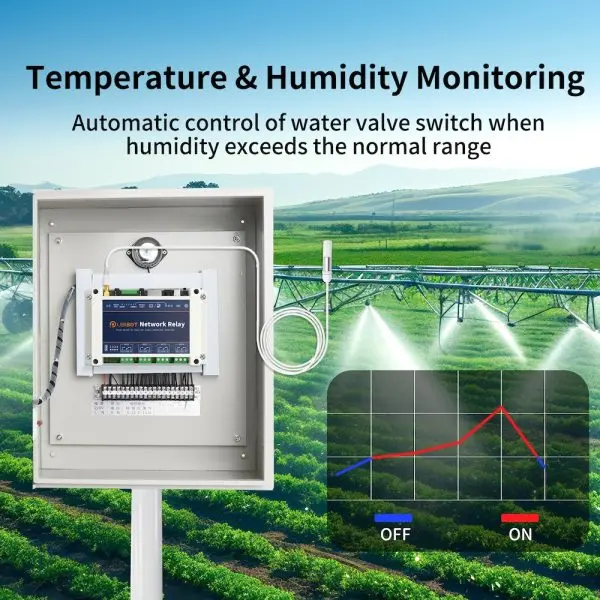

  The device can be triggered regularly or according to the environmental conditions for various irrigation equipment, sunshades, water pump, and other equipment.

• Intelligent Factory
  Able to support RS485 communication, the device can communicate with industrial control machines or PLC equipment to achieve offline control of industrial equipment.

• Intelligent Building
  Used in intelligent buildings, you can control the fresh air system, air conditioning, lighting, security gates, etc. This is accomplished either through the platform or APP at any time.

• Livestock Breeding
  Allows you to control large equipment, such as oxygenators, blowers, etc. This enables you to reduce manpower and enjoy the benefits of intelligent breeding.

• Intelligent Parking
  You can automatically control the vehicle in and out of the lift bar, rolling door, etc. While facilitating vehicle travel, it also reduces maintenance costs.

• Access Control and Security
  With infrared switch sensor, it can automatically link remote control of access control system, electric door or rolling shutter door to improve security.
