UbiBot Temperature Humidity Monitoring System
Industrial-Grade
Wireless Smart Multi-Sensor IoT Device
with LCD Display
2.4GHz WIFI Version
~ Temperature, Humidity and Light Level ~
(Model No.: GS1-A1RS Version 2)
Descriptions

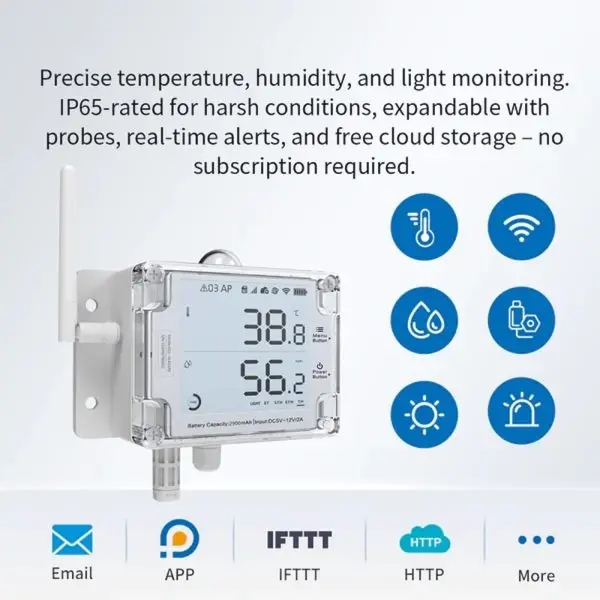

The UbiBot GS1-A1RS version 2 offers advanced environmental monitoring with integrated light sensors and RS485 expansion for external probes, making it perfect for diverse industries like agriculture, cold storage, and laboratories. It can monitor temperature, humidity, and light levels while supporting external probes for parameters such as soil moisture, CO2, and extreme temperatures.
Designed for harsh conditions, the IP65-rated GS1-A1RS version 2 is built to last. With its 2500mAh lithium battery, it offers up to six months of monitoring. The device connects seamlessly to 2.4GHz WiFi networks, providing real-time data access and alerts through the UbiBot platform. You can manage alerts for unusual readings or network issues via the free app, email, or IFTTT, with the option for SMS and voice notifications (extra charges apply).
Whether you’re monitoring a greenhouse, server room, or cold storage facility, the GS1-A1RS ensures 24/7 monitoring with 200MB of free cloud storage, enough for two years of data. Full data export/import capabilities (PDF/CSV) provide comprehensive reporting. Additionally, the RS485 port allows you to connect multiple external probes, tailoring your system to specific monitoring needs.
It also supports multiple 5V and 12V RS485 external probes, but only one of each type can be connected at a time.
The clear 4” LCD screen allows you to instantly view the latest data.
The device supports three types of power supply: internal lithium battery, Type-C 5V (USB cable provided), and DC 5V/2A (included). The 2500mA lithium battery ensures a long working time.
The UbiBot GS1-A1RS to support DS18B20-Audio Temperature Probe, must add a Temp-RS485 Converter.
The UbiBot GS1-A1RS to support 12V Audible Alarm, must add a RS485-Alarm Converter and power by 12V/2A power adapter.
Features

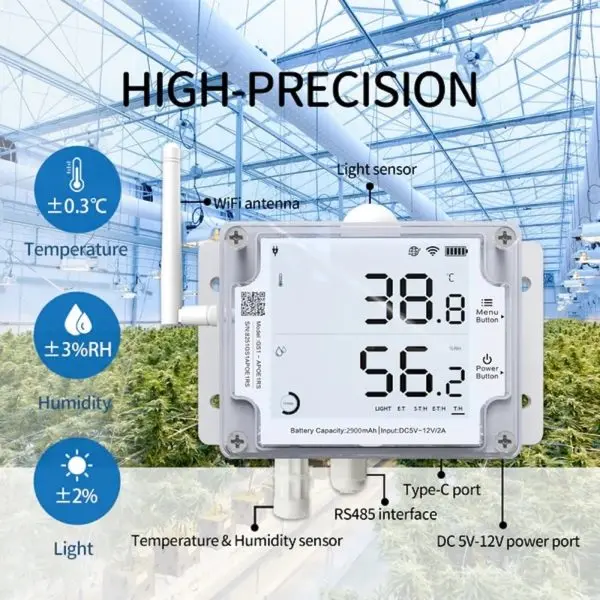

- Precision Tracking: Swiss sensors ensure accurate monitoring of temperature, humidity, and light levels. Expand with external probes for air/soil temperature, CO2, and more.
- Versatile Monitoring: IP65-rated for harsh environments, suitable for agriculture, cold storage, labs, and industrial use.
- Customizable Alerts: Set real-time notifications via app, email, or IFTTT for critical conditions.
- No Subscription Required: Access 200MB of free cloud storage with long-term data storage and reporting.
- Extended Power Options: Internal 2500mAh battery with multiple power supply options, including USB Type-C and DC 5-12V
NOTE:
- It supports multiple 5V RS485 external probes, but only one of each type can be connected at a time.
- For WiFi connection, GS1-A1RS can only work with a 2.4 GHz WiFi network. 5 GHz WiFi is not supported.
External Probes & Accessories

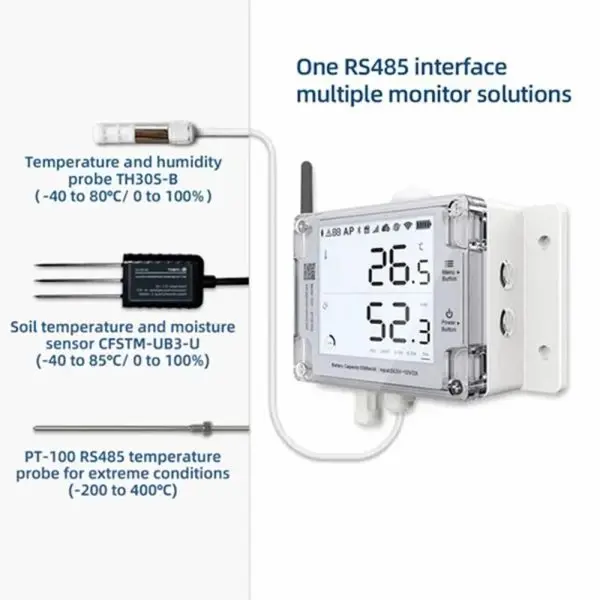

– With splitters, it supports multiple RS485 probes:
- TH30S-B Air Temperature and Humidity Probe

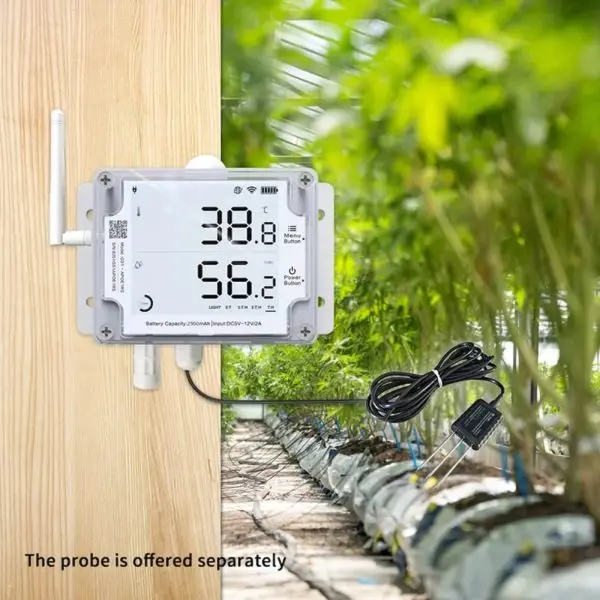

- Soil Temperature and Moisture Sensor
- PT 100 Industrial-grade Temperature Probe
- Wind Speed Sensor
- Wind Direction Sensor
- CO2 Probe
- To supports DS18B20-Audio Temperature Probe, add a Temp-RS485 Converter.
NOTE:
- Only 1 of each type of probe can be connected at a time.
Applications
- Online real-time detecting temperature and humidity
- Greenhouse
- Museum
- Wine Cellar
- Pharmacy
- Horticulture
- Animal Breeding Warehouse
Specification:
- Temperature
- Range: -20℃ to 60℃ (-4℉ to 140℉)
- Typical Accuracy: ±0.3℃
- Humidity
- Range: 10% to 90%, No condensation
- Typical Accuracy: ±3%RH
- Ambient Light
- Range: 0.01 to 157K lux
- Accuracy: ±10%
- Operation System: iOS 16+, Android 11+, or Windows 7+
- Memory: 300,000 sensor records
- WiFi Information: supports 20MHz or “Auto” setting supports OPEN, WEP, or WPA/WPA2 types, WPA2-Enterprise (802.1x / RADIUS authentication) network is not supported, requires 2.4GHz (802.11 b/g/n), channels 1-13 (5GHz WiFi NOT supported)
- Screen Size: 4’’
- Material: Flame resistant ABS+PC
- Switch Type: button
- Power Source: Internal Lithium batteries, Type C 5V, DC 5-12V
- Battery Capacity: 2500 mAh
- Dimensions: 11.5 x 9 x 5.5 cm
- Weight: 436g ± 3g
Package List
- 1 x GS1-A1RS Version 2
- 1 x External antenna
- 1 x manual book
- 1 x Type-C USB cable (1m)
- 1 x 12V UK power adapter
The GS1 series device has an IP65 protection rating, which effectively prevents dust ingress and resists low-pressure water jets. However, when exposed long-term to harsh outdoor environments (such as continuous rainfall, high humidity, or intense sunlight), there is still a potential risk of moisture or rainwater gradually infiltrating, which could affect the device’s long-term stability and service life.
It is recommended that for outdoor use, the device be installed in a weatherproof outdoor distribution box or other sheltered environment to enhance its reliability and durability in complex climatic conditions.
