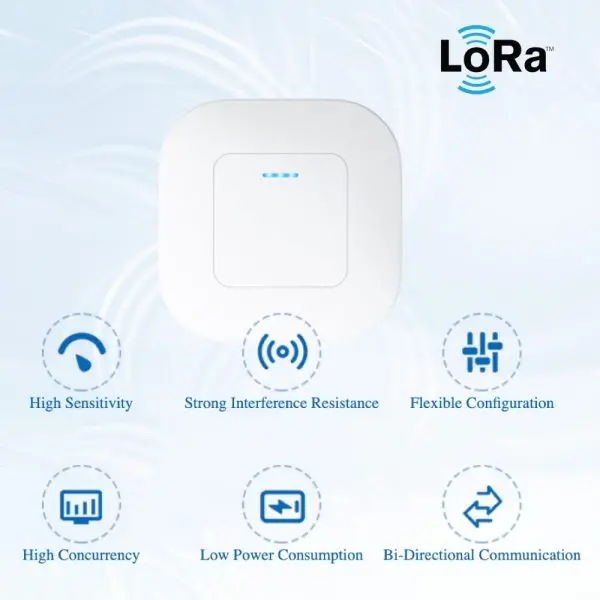

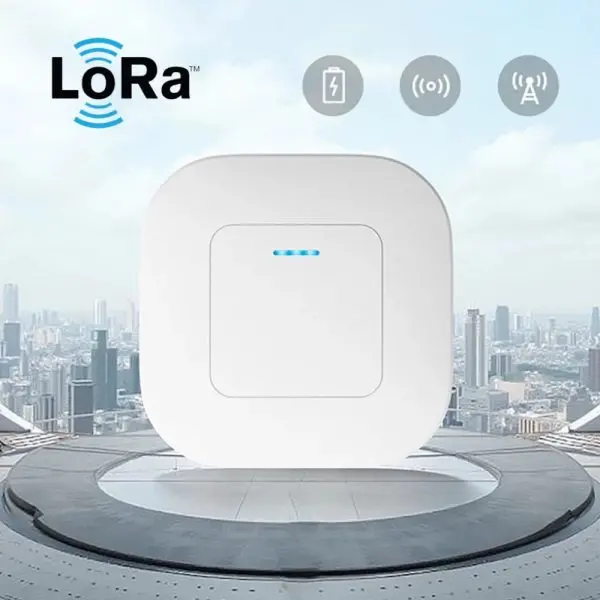

UbiBot LoRa 4G Gateway GW1
LoRa Version
~ Ultra-Low Power, Long-Range IoT Connectivity ~
(Model No.: GW1-24F4G + 4G Cellular)
Descriptions
The UbiBot LoRa 4G Gateway GW1 is your all-in-one solution for wide-area IoT monitoring. Built on advanced LoRa modulation, the GW1 delivers up to 1 km of wireless coverage in ideal conditions while consuming minimal power—perfect for large-scale deployments across agriculture, smart buildings, warehousing, and beyond. Supporting up to 100 endpoints, it consolidates sensor data into a single, reliable stream that’s pushed to the UbiBot Cloud over Wi-Fi, 4G, or Ethernet.
An integrated real-time dashboard provides instant visibility into network health, data flow, and device status with clear indicator lights and a web/mobile interface. Engineered to withstand harsh environments (–20 °C to 60 °C, 10–90% RH), the GW1 ensures uninterrupted performance. And with UbiBot’s forthcoming lineup of specialized LoRa tags—covering temperature, humidity, contact sensing, and vibration—you can tailor your monitoring network to virtually any application. Unlock smarter, greener, and more cost-efficient IoT today with the UbiBot LoRa Gateway GW1.
GW1-24F4G: Ideal for installations with reliable LAN, Wi-Fi and 4G Cellular; simply plug in the Ethernet cable, 4G SIM card or connect over your existing wireless network.
Features
- Up to 1 km Range – Leverage LoRa’s superior signal penetration for reliable outdoor coverage without repeaters.
- Ultra-Low Power Consumption – Designed for energy-efficient operation, extending battery life of connected sensors and reducing maintenance.
- 100-Node Scalability – Seamlessly manage and aggregate data from up to 100 UbiBot LoRa tags or sensors via a single gateway.

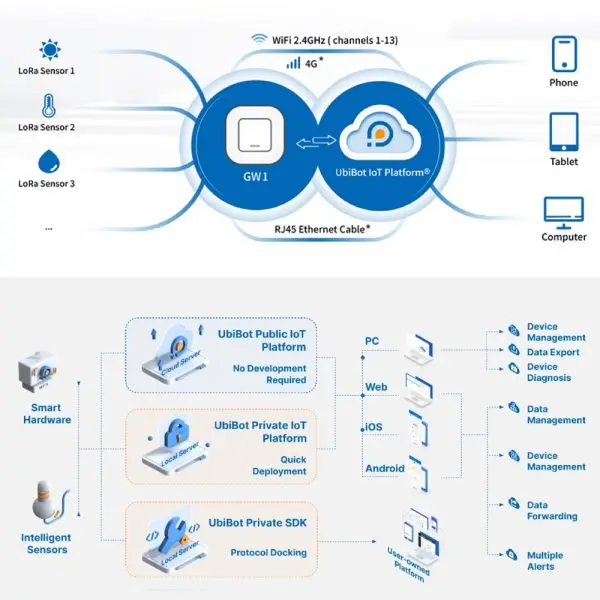

- Flexible Multi-Network Connectivity – Connect to the UbiBot Cloud over Wi-Fi, 4G cellular, or RJ45 Ethernet for uninterrupted data flow.
- Real-Time Status Dashboard – Intuitive LED indicators and cloud UI show network health, data transmission, and device status at a glance.
- Rugged & Reliable – Operates from –20 °C to 60 °C with 10–90% RH tolerance (non-condensing), ideal for industrial, agricultural, and smart-building environments.
- Cost-Effective Rollout – Minimize infrastructure expenses with LoRa’s long range and low deployment requirements—no extensive cabling needed.
- Future-Ready Tag Ecosystem – Upcoming release of diverse LoRa tag types (temperature, humidity, door/window, vibration, and more) will enrich your monitoring solutions.
Applications
- Online real-time detecting temperature, humidity and light level
- Greenhouse
- Museum
- Wine Cellar
- Pharmacy
- Horticulture
- Animal Breeding Warehouse
- Server Room
Specification:
- LoRa Frequency Bands: EU868
- Network Connectivity:
- Wi-Fi 2.4 GHz (channels 1–13)
- Ethernet (RJ45)
- Cellular 2G/3G/4G
- Device Interface: USB-C (power) / DC jack / RJ45 / SIM card slot
- Storage Capacity: Up to 300,000 records
- Colour: White
- Material: Flame-resistant ABS+PC
- Power Supply: DC 12 V / PoE (requires separate PoE splitter)
- Dimensions: 19 x 819 x 4 cm
- Weight: 298g ± 3g
- Sensor & Accessories: Compatible with UbiBot LoRa sensors and upcoming tag types
- Mounting Options: Wall-mount or DIN-rail
- Operating Environment: –20 °C to 60 °C; 10–90% RH (non-condensing)
- Certifications: CE, RoHS, FCC
Package List
- 1 x GW1-24F4G UbiBot LoRa Gateway
- 1 x manual book
- 1 x 12V Power Adapter (UK 3-pin plug with Singapore Safety Mark)
