UbiBot LoRa Smart CO2 Sensor
The Smartest IoT Device
LoRa Version
~ High-Performance CO2 Monitoring with LoRa Connectivity ~
(Model No.: DC1-L-CO2-P1)
Descriptions
LoRa model: The device can only connect to the UbiBot LoRa Gateway.

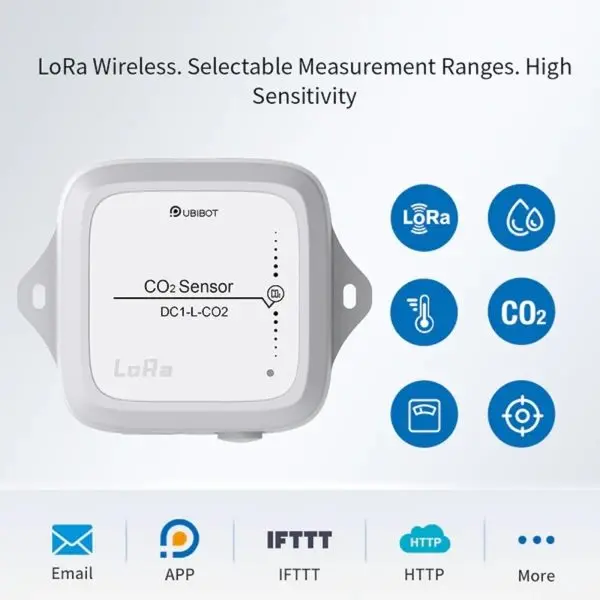

The UbiBot LoRa Smart CO2 Sensor DC1-L-CO2 is a high-performance LoRa carbon dioxide sensor designed for precise environmental monitoring. It is available in multiple ranges of CO2 sensors, with effective measurement ranges from 0–10,000 ppm and 400–2,000 ppm. This flexibility makes it ideal for both low-concentration indoor monitoring and high-concentration industrial applications. Featuring high sensitivity and a fast response time, it delivers accurate and timely readings for air quality assessment, environmental control, and industrial gas detection.
Equipped with imported high-precision components, the DC1-L-CO2 ensures stable and reliable CO2 concentration detection across various demanding environments. Its advanced sensing technology guarantees consistent accuracy, enabling users to maintain safe, healthy, and efficient work or living spaces.
Powered by LoRa communication technology, the DC1-L-CO2 offers long-range wireless transmission, strong signal penetration, and cost-effective deployment. A single gateway can support up to 100 nodes, enabling large-scale monitoring networks without the need for complex wiring.
Designed for versatility, the DC1-L-CO2 supports both battery power and DC 12V supply, meeting diverse application requirements.
UbiBot DC1-L-CO2 delivers stable performance and reliable data for intelligent environmental monitoring. Whether it’s improving air quality, optimizing energy management, or ensuring safety, this sensor provides the precision and flexibility needed for modern IoT applications.
Features:
- High-Precision CO2 Detection: Measurement range: 400 ~ 2,000 ppm / 0 ~ 10,000 ppm, ensuring stable carbon dioxide monitoring for various environments.

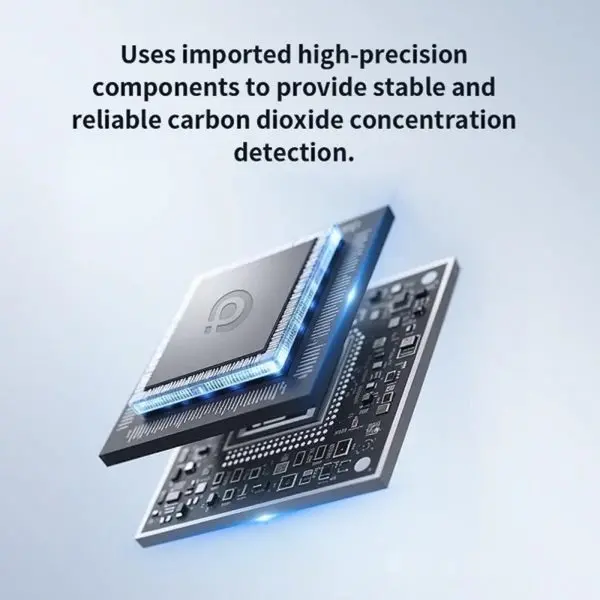

- Excellent Measurement Accuracy: Uses imported high-precision components to deliver reliable and highly accurate CO2 concentration readings.
- LoRa Wireless Transmission: Long-range, cost-efficient communication supporting up to 100 nodes without additional wiring.
- Dual Power Supply Design: Supports both battery power and DC 12V power supply for flexible deployment.
- Offline Data Storage: Stores up to 50,000 records locally with automatic data retransmission after reconnection to ensure integrity and traceability.
- Real-Time IoT Connectivity: Connects to LoRa Gateway and UbiBot IoT Platform for real-time monitoring, alerts, and historical data.
- HS Code: 9025800090
Applications:
- Online real-time detecting temperature, humidity and light level
- Greenhouse
- Museum
- Wine Cellar
- Pharmacy
- Horticulture
- Animal Breeding Warehouse
- Server Room
Specification:

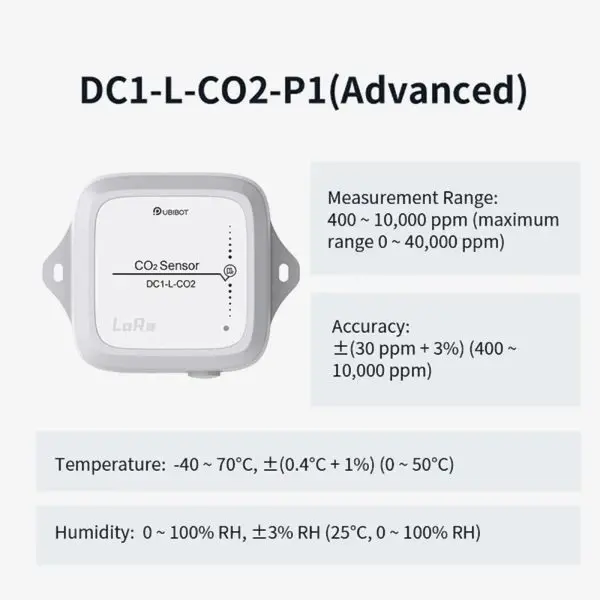

- Carbon Dioxide (CO2)
- Range: 400 ~ 10,000 ppm (maximum range 0 ~ 40,000 ppm)
- Typical Accuracy: ±(30 ppm + 3%) (400 ~ 10,000 ppm)
- Temperature
- Range: -40℃ to 70℃
- Typical Accuracy: ±(0.4℃+1%) (0~50℃)
- Humidity
- Range: 0% to 100%, No condensation
- Typical Accuracy: ±3%RH (25℃)
- Storage Capacity: up to 50,000 sensing records
- LoRa Frequency Bands: EU868
- Device Interface: Type C / DC port (power supply)
- Wireless Connectivity: LoRa for uplink to gateway (up to 100 nodes)
- Mounting Options: Wall-mount
- Material: ABS
- IP Rating IP65
- Power Source: 4 x AA batteries / 4 * Lithium-ion chloride batteries / Lithium battery / DC 12V (Batteries Not Included)
- Battery Life: 2 months to 19 months*
- Dimensions: 108 x 92 x 47 mm
- Weight: 151g ± 3g
*The quoted battery life varies depend on type of battery and 10 min to 30 min collect / upload data under stable signal conditions with synchronisation and sampling settings.
Package List:
- 1 x UbiBot LoRa Smart CO2 Sensor (DC1-L-CO2-P1)
