UbiBot
Noise Transmitter
Sound Level Sensor
for UbiBot IoT Device GS1
(Model No.: UBIBOTNOISE)
Descriptions

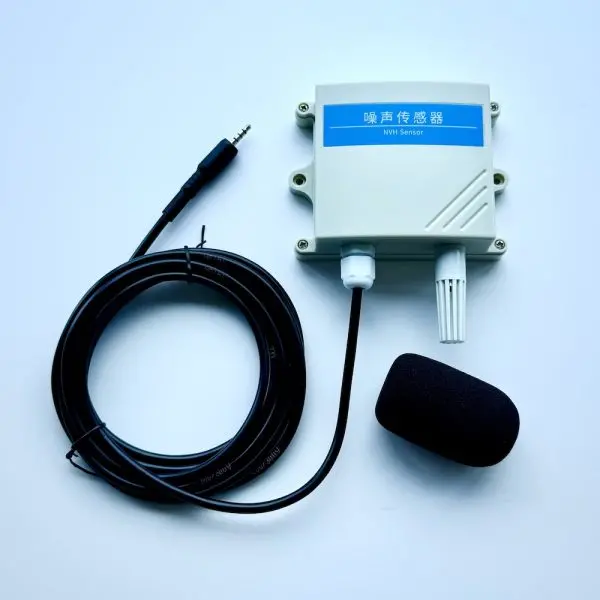

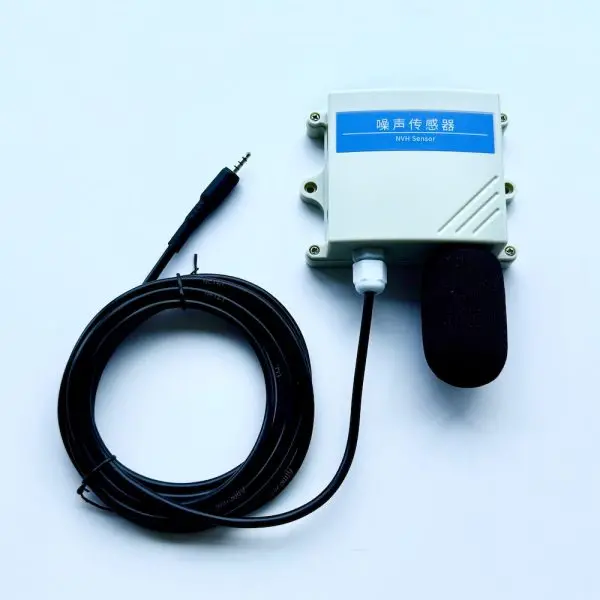

The Noise Transmitter is Ubibot self-developed Sound Level Sensor Probe. With industrial sensor, it can measure noise / sound level in a range of 30 dB – 130 dB, with noise accuracy of ±0.5dB at reference tone, 94dB@1kHz.
In many scenarios, noise play a negative role, such as home, office, factory, etc. To prevent noise from harming our wellness and health, you will need this probe to notify you when the set threshold is crossed.
As one accessory of GS1 device, it needs connection to the GS1 series of devices, such as GS1-AL4G, GS1-AETH, ect. With this probe, you don’t need to keep watching the readings all the time. All the data of long term can be stored on our platform and accessed from the app and the web console. The custom alerts will notify you of sudden change or extreme conditions via app notifications, emails, SMS texts, voice call, IFTTT, etc.
By integrating with GS1 device, the other platform features will also be accessible to the noise transmitter data. Our platform works with IFTTT (if this then that), which supports automation with your other electronic appliances, such as fans, ventilation system.
Free data export, long term storage, data forwarding, are all accessible to the noise transmitter data, actually all the data on our system.
Features
- Design to pair with UbiBot GS1 device
- Reading can be display on the GS1 screen
- Remote access via the app or web console
- Multiple modes of alert notify you when the readings going over the normal range
Applications
- Home
- Office
- Warehouse
- Factory
- Transportation Hub
Specification:
- Measuring Range: 30 to 130 dB
- Accuracy: ±0.5dB (at reference tone, 94dB@1kHz)
- Resolution: 0.1 dB
- Frequency Range: 20Hz ~ 12.5kHz
- Response Time: ≤ 3 sec
- Stability: < 2% over usage cycle
- Output interface: RS485
- Communication Protocol: Modbus RTU
- Power Consumption: 0.4W
- Size of the Probe: 65x46x29mm
- Length of cable: 3 meters
- Operation Condition: -20~60°C; 0~95%RH (Non-condensing)
- Connector: 3.5mm Audio Plug
- Power Supply: 12V DC
