UbiBot
Smart IoT Devices
Industrial-Grade
Wireless Smart Multi-Sensor IoT Device
with LCD Display
2.4GHz WIFI and 4G Version
~ Temperature, Humidity & Light Level ~
(Model No.: GS1-AL4G1RSV2)
Descriptions

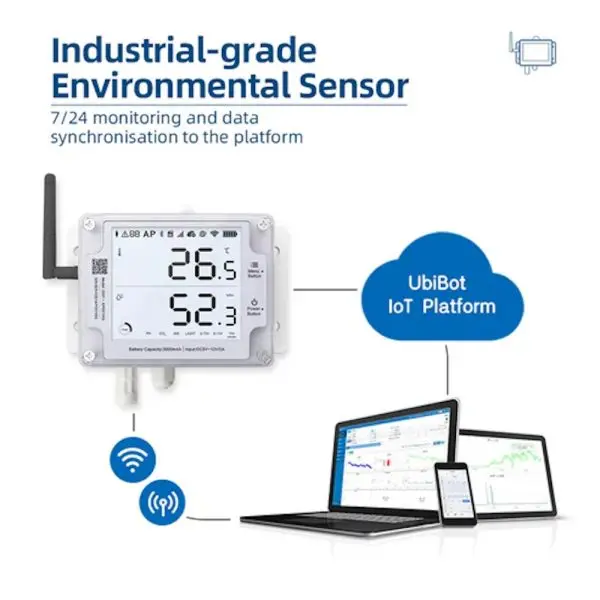

UbiBot® industrial-grade GS1-AL4G1RS Version 2 is a smart IoT devices with cloud-based environmental monitoring data logger. It supports WiFi and mobile GPRS/3G/4G 2 types of connection. A mobile GPRS/3G/4G network provides internet connection when WiFi is not available. With its embedded temperature, humidity and ambient light sensors, it detects environmental data all day round and automatically syncs all data to the UbiBot® IoT cloud platform, allowing you to access data and monitor the environment remotely from anywhere in the world via the free UbiBot APP or Web Console and to receive real-time alerts.
Smart Io Devices, the GS1-AL4G1RS (V2) is IP65 dustproof and water-resistant for outdoor use. It supports multiple 5V and 12V RS485 external probes, but only one of each type can be connected at a time. The clear 4” LCD screen allows you to instantly view the latest data.
UBIBOT GS1-AL4G1RS(V2) with add-on UB-TRS-BN1 Temperature Converter to support DS18B20-Audio Temperature Probe, with add-on UB-ARS-N1 Alarm Converter for Strobe Light and Siren Alarm.
Features
- Built-in temperature, humidity, and ambient light sensors
- 2.4 GHz WiFi and mobile GPRS/3G/4G 2 types of connection, no need of hubs or gateways; a free UbiBot Global SIM Card is included
- Industrial-grade shell, strong and durable; IP65 water-resistant for outdoor use
- 4” high-quality LCD screen displaying current environmental conditions
- Free App & Web Console to access and monitor real-time data remotely, no subscription fee
- Unlimited UbiBot cloud storage for historical data; free historical data export
- Multiple ways of real-time alerts: App notifications, emails, phone calls, SMS, HTTP
- Working with IFTTT, Google Sheet, Alexa
- Supporting multiple RS485 external probes; only one of each type can be connected at a time
- Easy setup with free UbiBot App or PC tools
- Memory with a capacity of 300,000 records stores all data even if the network is temporarily disconnected, which ensures there are no gaps in the data history
- Three types of power supply: internal lithium battery, Type-C 5V (USB cable provided), and DC 12V (included)
- Compliance with CE, EN 12830, FCC, FDA CFR21, IC, RCM, RoHS, TELEC
NOTE:
- For WiFi connection, GS1-AL4G1RS (V2) can only work with a 2.4 GHz WiFi network. 5 GHz WiFi is not supported.
- It supports multiple RS485 external probes, but only one of each type can be connected at a time.
- GS1-AL4G1RS (V2) is IP 65 waterproof, but not resistant to high humidity over 90%.

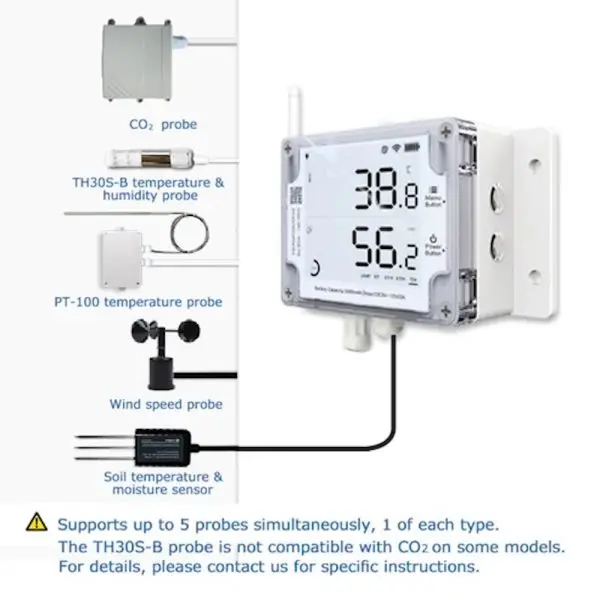

External Probes & Accessories
– With splitters, it supports multiple RS485 probes:
- TH30S-B Temperature and Humidity Probe
- Soil Temperature and Moisture Sensor
- PT 100 Industrial-grade Temperature Probe
- Wind Speed Sensor
- CO2 Probe
- Add-on Temperature Convertor to support DS18B20-Audio Temperature Probe
NOTE:
- Only one type RS485 probe can be connected at a time.
Applications
- Online real-time detecting temperature, humidity and light level
- Agriculture
- Greenhouse
- Museum
- Wine Cellar
- Pharmacy
- Horticulture
- Animal Breeding Warehouse

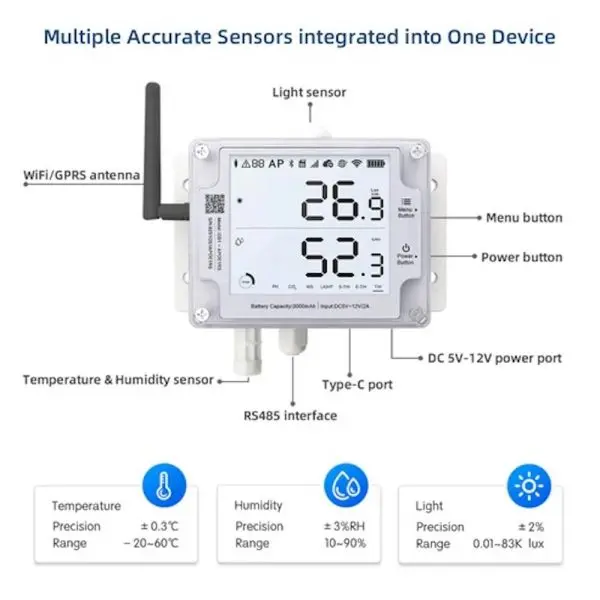

Specification:
- Temperature
- Range: -20℃ to 60℃( -4℉ to 140℉)
- Typical Accuracy: ±0.3℃
- Humidity
- Range: 10% to 90%, No condensation
- Typical Accuracy: ±3%RH
- Ambient Light
- Range: 0 to 83,000 lux
- Accuracy: ±2%
- Memory: 300,000 sensor records
- WiFi Specifications: 2.4GHz, channels 1-13 (5GHz WiFi NOT supported)
- 4G: LTE FDD & TDD (SIM card is not provided)
- Screen Size: 4’’
- Colour: White
- Material: Flame resistant ABS+PC
- Swtich Type: button
- Power Source: Internal Lithium batteries, Type C 5V, DC 12V/2A
- Battery Capacity: 2500 mAh
- Dimensions: 11.5 x 9 x 5.5 cm
- Weight: 450g ± 3g
Package List
- 1 x GS1-AL4G1RS (V2) device
- 1 x manual book
- 1 x Type-C USB cable (1m)
- 1 x 12VDC/2A Power Adapter
