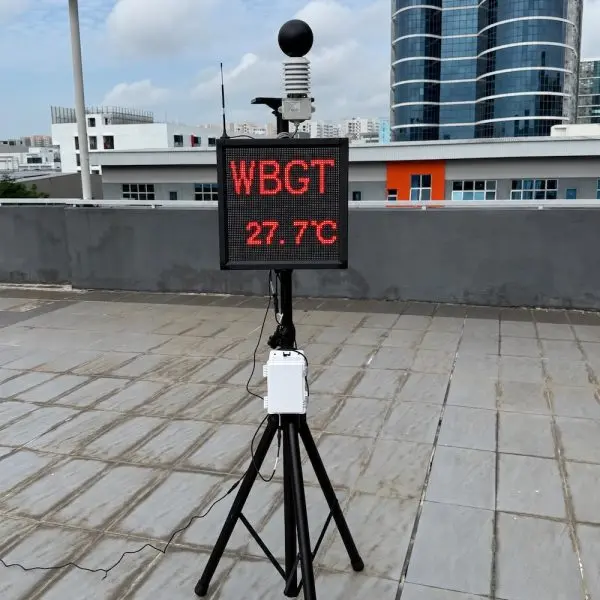

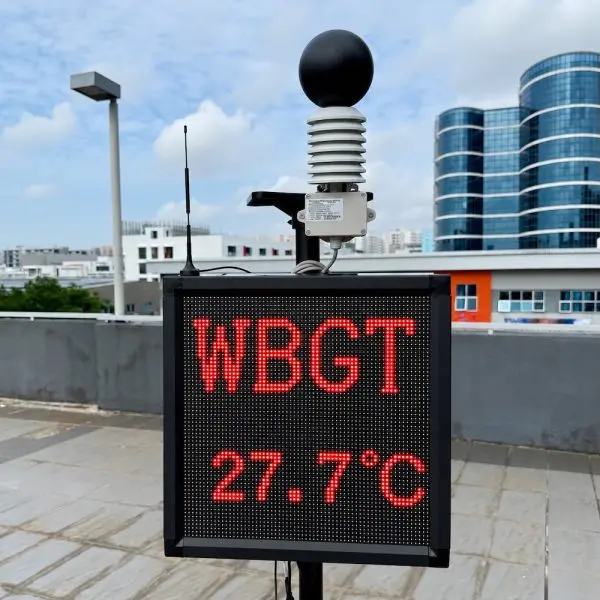

4G / WIFI Heat Stress WBGT Monitoring System with LED Display Board
Wet Bulb Globe Temperature Meter
WBGT Monitoring System
Heat Stress Wet Bulb Globe Temperature (WBGT) Meter
with LED WBGT Display Board
(Model No.: HD-WBGT-02)
Quality Product ~ Made in China
How to use wireless WBGT monitoring system ?
The wireless WBGT Monitoring System is quick-response with accurate measurement for the effects of temperature, humidity, and direct or radiant sunlight.
Application
Featuring automatic data recording and wireless WIFI or 4G transmission, heat stress WBGT monitoring system can monitor and transmit data in real time to smartphones or tablets via a dedicated app, for in-depth analysis and advanced applications. Wireless WBGT Monitoring System is ideal for environments where real-time monitoring is essential, such as sports training facilities, outdoor event venues, and high-temperature workplaces. The system supports faster, more convenient heat hazard monitoring and provides early warning capabilities.
In order to measure the WBGT index, you should refer to the following regulations:
- ISO7243 : Hot environments. Estimation of the heat stress on working man.
- ISO7726 : Ergonomics of the thermal environment-instruments for measuring physical quantities.
Features
- Meet the specification outlined by Ministry of Manpower ( MOM )
- WBGT Sensor 100mm Diameter
- LED Screen 30*42 cm screen (3m cable)
- 4G/WIFI Gateway and Server
- Cloud-based Remote Data Management Platform
- Auto Email and SMS Alert when WBGT parameter exceed safe range
- Power Supply: DC 12V
Specifications
- Wet bulb globe temperature (WBGT) :
- Outdoor with sunlight : WBGT=(0.7×WET)+(0.2×TG)+(0.1×TA)
- Range : 15~59.0℃
- Resolution : 0.1℃
- Accuracy : ±1℃
- Outdoor with sunlight : WBGT=(0.7×WET)+(0.2×TG)+(0.1×TA)
- Air temperature (TA):
- Range : -50~80.0℃
- Resolution : 0.1℃
- Accuracy: ±0.1℃
- Black globe temperature (TG), 100mm diameter:
- Range : -40~120.0℃
- Resolution : 0.1℃
- Accuracy: ±0.2℃
- Relative Humidity (%RH):
- Range : 0%~100%
- Resolution : 0.1%
- Accuracy at 25℃ : ±2.0%RH(20~80%)
- Wet bulb temperature (WET):
- Range : -40~60.0℃
- Resolution : 0.1℃
- Accuracy: ±0.3℃
- Dew point temperature (DEW):
- Range : -50~80.0℃
- Resolution : 0.1℃
- Accuracy: ±0.1℃
- Custom LED Screen (30*42): 370 x 370 x 100mm
- Communication: 4G or WiFi (2.4 GHz)
- Cloud Monitoring Platform: Real-time display of WBGT, Wet bulb, Globe Temperature, Air Temperature and Humidity
- Cloud Function: Dashboard, Historical Trend, Alarm Log, CSV/Excel Export
- Power supply: DC 12V
- Operating Temperature & Humidity : 0°C to +50°C; 15%~90%RH
- Manufacturer’s Test Report
- ISO/IEC 17025 SAC-SINGLAS Accredited Labs Calibration Certificate (Optional)
| Weight | 20 kg |
|---|---|
| Dimensions | 55 × 60 × 30 cm |
