MIC WIFI Heat Stress WBGT Monitoring System with LED Display Board & Siren Alarm
  1. WBGT Display Board
  2. MIC WIFI Heat Stress WBGT Monitoring System with LED Display Board & Siren Alarm

MIC WIFI Heat Stress WBGT Monitoring System with LED Display Board & Siren Alarm

Contact Us for Official Quote

Wet Bulb Globe Temperature Meter

SKU: MIC98275WBGTWIFI Category: Tags: , ,

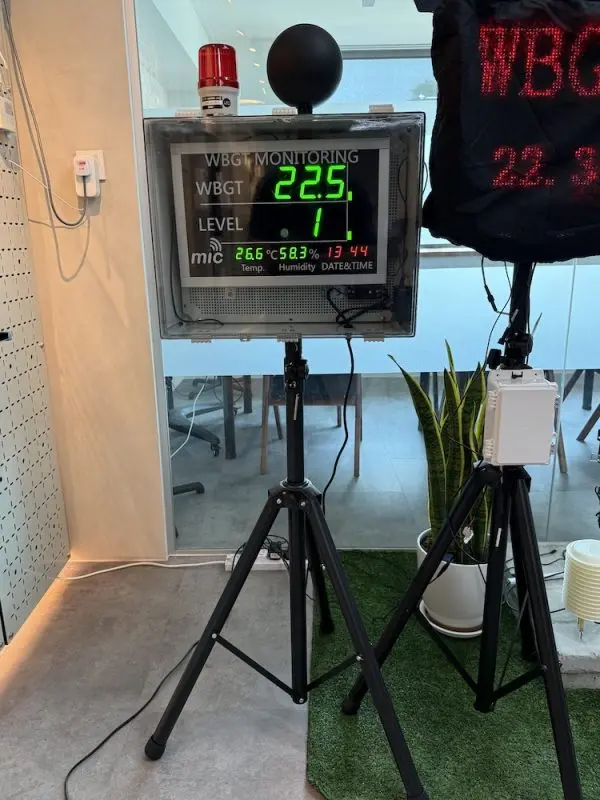

MIC WIFI Heat Stress WBGT Monitoring System
Heat Stress Wet Bulb Globe Temperature (WBGT) Meter
with Wireless WIFI LED WBGT Display Board
(Model No.: 98275B_WBGT_WiFi)

Quality Product ~ Made in Taiwan

How to use wireless WIFI heat stress WBGT monitoring system ?

The wireless WIFI HEAT STRESS WBGT Monitoring System is quick-response with accurate measurement for the effects of temperature, humidity, and direct or radiant sunlight.

Application

Featuring automatic data recording and wireless WIFI transmission, heat stress WBGT monitoring system can monitor and transmit data in real time to smartphones or tablets via a dedicated app, for in-depth analysis and advanced applications.  Wireless WIFI Heat Stress WBGT Monitoring System is ideal for environments where real-time monitoring is essential, such as sports training facilities, outdoor event venues, and high-temperature workplaces. The system supports faster, more convenient heat hazard monitoring and provides early warning capabilities.
In order to measure the WBGT index, you should refer to the following regulations:
  • ISO7243 : Hot environments. Estimation of the heat stress on working man.
  • ISO7726 : Ergonomics of the thermal environment-instruments for measuring physical quantities.

Features

  • Meet the specification outlined by Ministry of Manpower ( MOM )
  • The most professional and stylish heat index monitoring display on the market, featuring multiple displays for heat index, temperature, humidity, time, and date. Time and date are displayed alternately every 2 seconds.
  • Easy to operate with large, highly visible digits, making it ideal for use in public areas.
  • Bright three-color LED indicators show different heat index levels: Green (Level 1), Yellow (Level 2), Red (Level 3).
  • Manual temperature and humidity compensation adjustment is available when readings shift.
    (Note: Please compare with a certified standard instrument before adjustment.)
  • Adjustable heat index alarm threshold settings.
  • 1-year warranty, with each unit undergoing precise calibration before shipment.

Specifications

  • Wet bulb globe temperature (WBGT) :
    • Outdoor with sunlight : WBGT=(0.7×WET)+(0.2×TG)+(0.1×TA)
      • Range : 15~59.0℃
      • Resolution : 0.1℃
      • Accuracy : ±1℃
  • Air temperature (TA):
    • Range : 0~50.0℃
    • Resolution : 0.1℃
    • Accuracy: ±1℃
  • Black globe temperature (TG), 150mm diameter:
    • Range : 0~50.0℃
    • Resolution : 0.1℃
    • Accuracy @20~50℃ : ±0.6℃; others ±1℃
  • Relative Humidity (%RH):
    • Range : 0.0%~99.9%
    • Resolution : 0.1%
    • Accuracy at 25℃ : ±3.0%RH(20~80%)
  • Wet bulb temperature (WET):
    • Range : 0~50.0℃
    • Resolution : 0.1℃
    • The value is calculated from the RH and air temperature.
  • Transparent Waterproof Box Size:
    • ABS (Material) PC (Transparent Lid)
    • 470 x 370 x 175 mm (Internal Dimension)
    • 500 x 400 x 200 mm (External Dimension)
  • A3 Dashboard Size: 420 x 270 x 50mm (L x W x H)

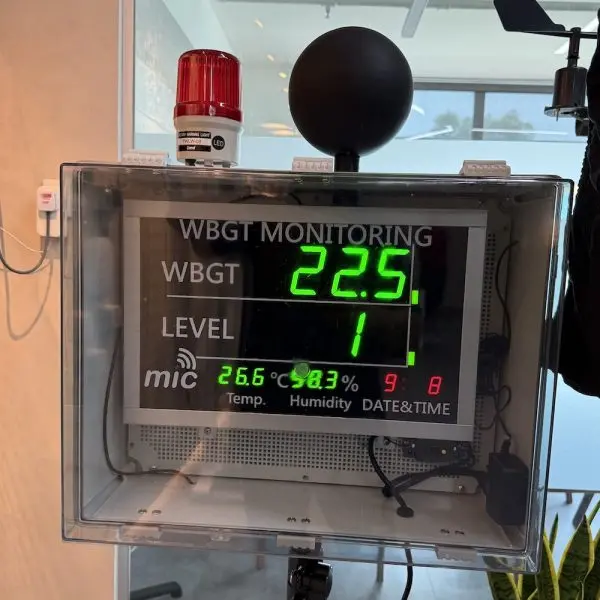

  • Display Board: WBGT value, Temperature, Humidity, Risk Level & Time
  • Heat Stress Level: Green: WBGT < 31℃, Yellow: 31℃ ≤ WBGT < 33℃, Red WBGT ≥ 33℃
  • Alarm: Built-in audible buzzer/siren, configurable thresholds
  • Communication WiFi (2.4 GHz)
  • Cloud Monitoring Platform: Real-time display of WBGT, Wet bulb, Globe Temperature, Air Temperature and Humidity
  • Cloud Function: Dashboard, Historical Trend, Alarm Log, CSV/Excel Export
  • Power supply:
    • Input: AC 100~240V, 50/60Hz, 0.5A
    • Output: DC 12V
  • Operating Temperature & Humidity : 0°C to +50°C; 15%~90%RH
  • MIC Manufacturer’s Test Report
  • ISO/IEC 17025 SAC-SINGLAS Accredited Labs Calibration Certificate (Optional)
Weight20 kg
Dimensions55 × 60 × 30 cm
