Aeropulse Aeronode A100 13-in-1 Indoor Air Quality Monitoring Solution

IAQ Monitoring Solution
Aeropulse Aeronode A100
Smart Air Quality Monitoring Solutions
Commercial Grade Sensors
(Model No.: A100)

Descriptions

The Aeropulse Aeronode A100 is a versatile indoor air quality monitoring device capable of measuring a wide range of parameters, including CO₂, PM2.5, PM10, TVOC, temperature, humidity, light, noise, and air pressure. This IAQ monitoring solution features two interchangeable modules, allowing for flexible configurations with additional sensors or extended battery life.

The Aeronode Series supports WiFi (2.4G only) for cloud connections. The IAQ monitoring solution also integrates seamlessly with building automation systems through protocols such as Modbus, BACnet, and MQTT.

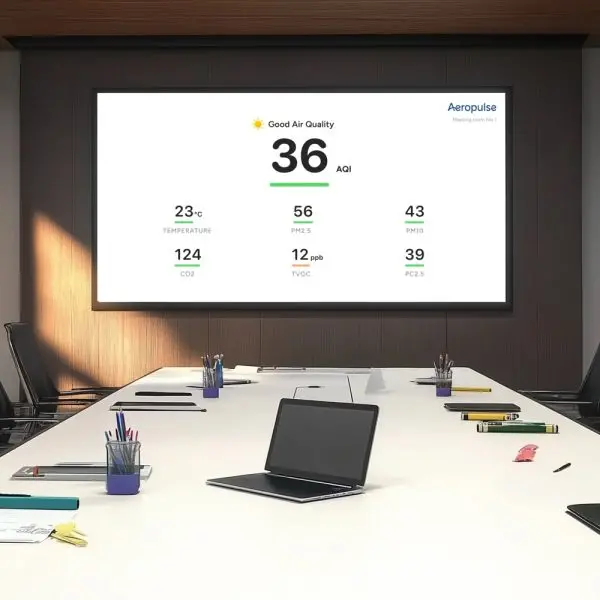

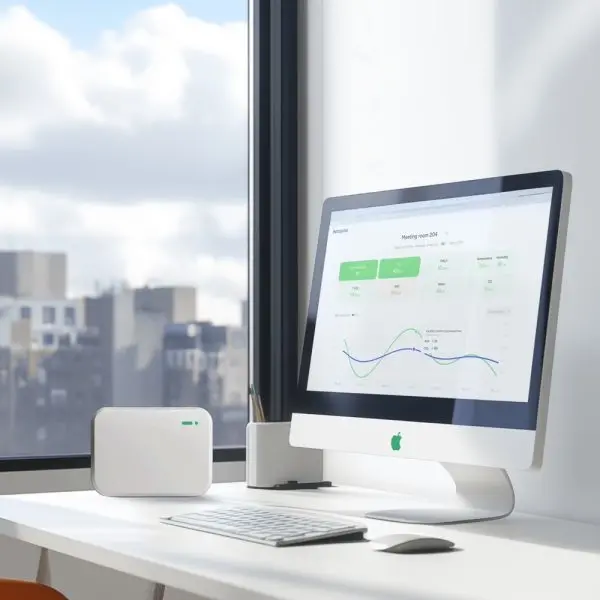

Designed for real-time insights, the Aeronode Series pairs with the Aeropulse dashboard to provide comprehensive data access and analysis.

Features

• Works with WELL
• Aeropulse Data Cloud Platform
• Replaceable capsules
• Sensor and battery capsules are interchangeable
• Up to 16 measurements in one device
• Multiple connectivity options
• Flexible power supply options
• Over 1.5 years of local data storage
• Aeropulse App: A straightforward application for device configuration.
• Visual and Audio Indicators: Equipped with a traffic light and buzzer to signal threshold levels.
• Minimalist design

Applications

• Online real-time detecting indoor air quality
• Green Building Assessment
• BAS and HVAC systems
• Smart Workplace System
• Fresh Air Controlling System
• Building Energy Saving Reconstruction and Assessment System
• Classroom, office, exhibition hall, shopping mall, any public places

Specification:

• Particulate Matter Sensor (Gray Module)
  • Mass concentration range: 0 to 1,000μg/m³
  • Mass concentration size:
    • PM2.5
    • PM10.0
  • Mass concentration accuracy
    • 0 to 100 μg/m³:  ±10 μg/m³
    • 100 to 1000 μg/m³:  ±10%
  • Sensor output resolution: 1 μg/m³
  • Sensor technology: Light scattering
• TVOC Index (Gray Module)
  • Measuring Range: 0~500
  • Accuracy: < ±15
  • Sensor output resolution: 1
  • Sensor technology: Mulit-pixel metal oxide sensor (MOx)
• NOx Index
  • Measuring Range: 0~500
  • Accuracy: < ±15
  • Sensor output resolution: 1
  • Sensor technology: Mulit-pixel metal oxide sensor (MOx)
• Carbon Dioxide CO₂ Sensor (Built-in)
  • Measurement Range:
    • 400 ~ 3000ppm
  • Accuracy: ±40 ppm ± 3% reading
  • Sensor technology: Non-Dispersive Infrared (NDIR)
  • Sensor output resolution: 1 ppm
• Temperature Sensor (Built-in)
  • Measuring Range: -40℃~125℃
  • Accuracy: Temperature︰±0.3℃
  • Sensor technology: Digital CMOSens® technology (MEMS)
  • Sensor resolution: 0.1℃
• Humidity Sensor (Built-in)
  • Measuring Range: 0~100%RH
  • Accuracy: ±3%RH
  • Sensor technology: Digital CMOSens® technology (MEMS)
  • Sensor resolution: 0.01% RH
  • Recommended lifetime: 10 years
• Light (Built-in)
  • Measuring Range: 0.01 – 83,000 lux
  • Accuracy: ±0.2%
  • Sensor technology: Photodiode
  • Sensor resolution: 0.01 lux
• Noise (Built-in)
  • Measuring Range: 35 – 95 dB
  • Accuracy: ±3dB @ 23±5°C
  • Sensor technology: Digital
  • Sensor resolution: 1 dB
• Air Pressure (Built-in)
  • Measuring Range: 300 – 1100 hPa
  • Accuracy: ±1 hPa
  • Sensor technology: Piezoresistive Absolute Pressure Sensor (MEMS)
  • Sensor resolution: 0.01 hPa
• Connectivity and Power Supply
  • Wi-Fi: 2.4 GHz 802.11 b/g/n
  • Modbus RTU/IP
  • BACnet MSTP/IP
  • MQTT
  • Power Supply: 10-30V DC, 24V AC, PoE, Type-C
• General Data
  • Dimension: 150*112*32mm
  • Weight: 235g
  • Operating Temperature: 0°C – 50°C
  • Operating Humidity: 10% – 90% RH (non-condensing)
  • Data Storage: 1-minute data average, with over 1.5 years of storage capacity

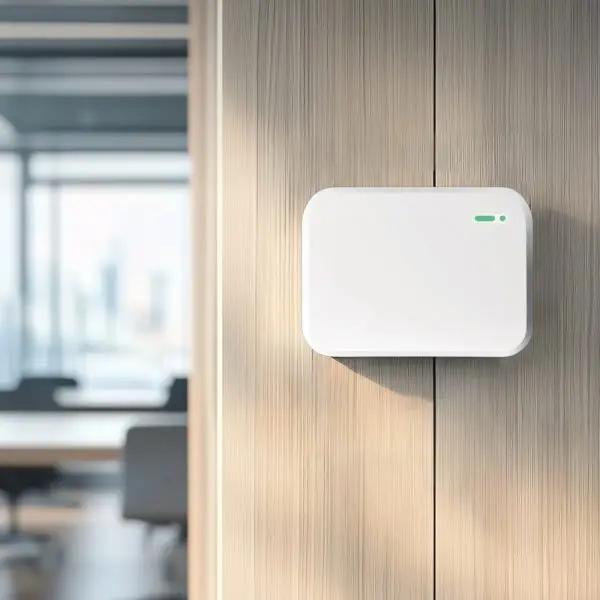

  • Installation: Wall or ceiling mount
• Certification
  • CE, FCC, RoHS, REACH, Works with WELL
