MultiTech LoRaWAN® Gateway for Kaiterra Sensedge Go Wireless Air Quality Monitor

MultiTech
LoRaWAN Gateway
for Kaiterra Sensedge Go (SE-300) Wireless Air Quality Monitor
(Model No. MTCAP3-EN)

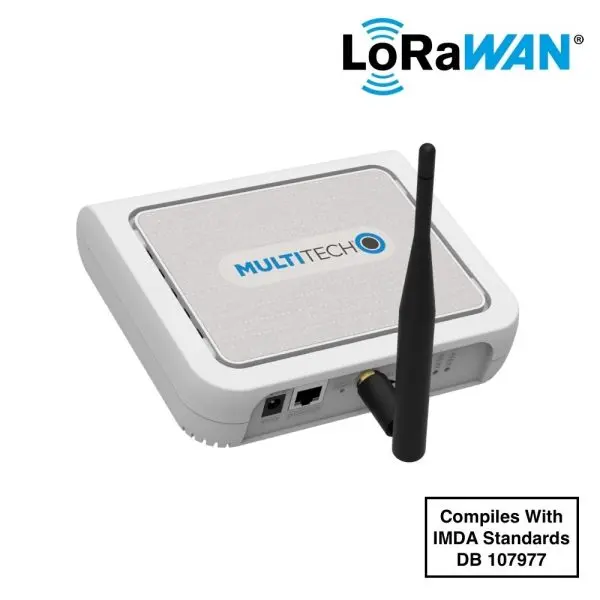

The MultiTech LoRaWAN Gateway featuring the mPower Edge Intelligence operating system serves as a gateway or access point that enables connectivity between LoRaWAN® wireless IoT devices and the network or cloud infrastructure. The Conduit AP Access Point offers various wide-area-network communication options, including wired and wireless interfaces, allowing flexibility in connectivity. It supports the LoRaWAN protocol in addition to Ethernet connectivity on the specific model and configuration.

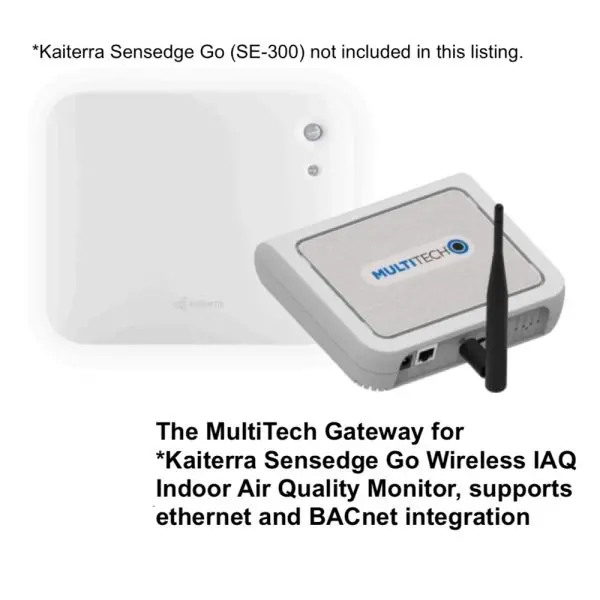

The MultiTech LoRaWAN Gateway for IoT deployments, enabling seamless connectivity, secure data transmission, and efficient management of connected devices. It is selected as the LoRaWAN gateway for latest Kaiterra Sensedge Go (SE-300) wireless indoor air quality monitoring system connectivity.

Benefits

• Integrations with cloud-based LoRa Network Server and IoT Cloud platforms
• Embedded LoRa Network Server for an out-of-box LoRaWAN network
• MultiTech DeviceHQ® device, network and application management
• Global LoRa channel plans
• GCF, PTCRB, and Mobile Network Operator approvals

Features:

• mPower Edge Intelligence operating system
• Secure Boot, data encryption and dual-image partitioning
• Python, C, C++, JavaScript, Node.js
• SX1303 8-channel LoRa baseband processor
• LoRaWAN 1.0.4 specification compliant (software upgradeable to future releases)
• Listen-Before-Talk
• Internal or External LoRa antenna options
• Configurable UDP and Basic Station Packet Forwarder
• LoRaWAN MQTT Broker application

LoRaWAN Specifications:

• Fine Timestamp for differential time of arrival
• -141dBm sensitivity
• 125kHz LoRa reception with:
  • 8 x 8 channels LoRa packet detectors
  • Spreading Factors 5,6,7,8,9,10,11,12
• 8 packets can be received simultaneously for any spreading factor
• 125/250/500kHz LoRa demodulator
• Channel Plan: AS923

Connectivity

• Ethernet: 1 x RJ45 jack (10/100 Base T)

Hardware

• CPU: Cortex A7 processor with 32 KB L1 Instruction Cache and 32 KB L1 Data Cache
  Volatile Memory: 512 MB SDRAM / Non-Volatile Memory: 512 MB NAND flash memory / 568 MHz
• WAN Backhaul: Ethernet 10/100 Base T
• LoRa: SX1303 baseband processor with SX1250 Tx/Rx front-end
• LEDs: POWER, STATUS, LORA
• DC Power: 5 VDC, 2.5A

Physical Characteristics

• Dimension: 165 (6.5) x 135 (5.3) x 36 (1.4) mm (in) (See diagram)
• Weight: 1.5 kg (3.3 lbs)
• Chassis Type: PC-ABS (polycarbonate-ABS)
• Installation: Desktop or wall mounting

Package includes:

• 1 x MultiTech LoRaWAN Gateway
• 1 x LoRa Antenna

1 Years Manufacturer Warranty – 30 Days One-to-One Exchange
