Tongdy F2000TSM-CO2-L110-N-02 Wall mounted CO2 Indicator Controller

Tondgy
Carbon Dioxide Detector
CO2 Indicator Controller
(Model No.: F2000TSM-CO2-L110-N-02)

The CO2 Indicator Controller with 6 lights indicate CO2 measurement range and one relay output controller.

• Real time carbon dioxide detection and control
• 6 lights indication CO2 concentration ranges
• Provide 1x on/off relay outputs to control automatically ventilation fan

Product Features

• Real-time detect CO2 level of indoor environment
• NDIR infrared CO2 sensor with Self-Calibration Algorithm and up to 15 years lifetime.
• Six LED lights indicate six CO2 ranges with clear real time CO2 level
• Provide 1 x relay dry contact passive outputs to control single stage ventilation or one fan based on CO2 setpoint.
• CO2 setpoints can be preset by DIP switches easily.
• High quality with the perfect appearance, the best choice for intelligent building and luxury residential.
• 24VAC/24VDC power supply
• CE-Approval

Application

This CO2 controller is used for real time detection ambiance CO2. It automatically controls single stage ventilation or one fan based on the CO2 measurements and CO2 setpoints. This CO2 controller has six colour LED lights.

• Hotel, exhibition hall, hospital, shop, restaurant, airport, train station, theater, and other public places.
• House, villa, office, meeting room, classroom, and other rooms.
• All ventilation systems

Specification:

• CO2 Sensor: Non-Dispersive Infrared Detector (NDIR)
• Measurement Range: 0 ~ 2000ppm
• Accuracy: ±40ppm + 3% of reading or ±75ppm (whichever is greater)
• Stability: <2% of full scale of sensor (15 yrs typical)
• Calibration interval: ABC Logic Self-calibration System
• Response Time: <2 minutes for 90% step change
• Warm up time: 2 hours (first time); 2 minutes (operation)
• NDIR life: >10 years
• Power Supply: 24VAC / 24VDC
• Consumption: 1.5W max.; 0.8W avg.

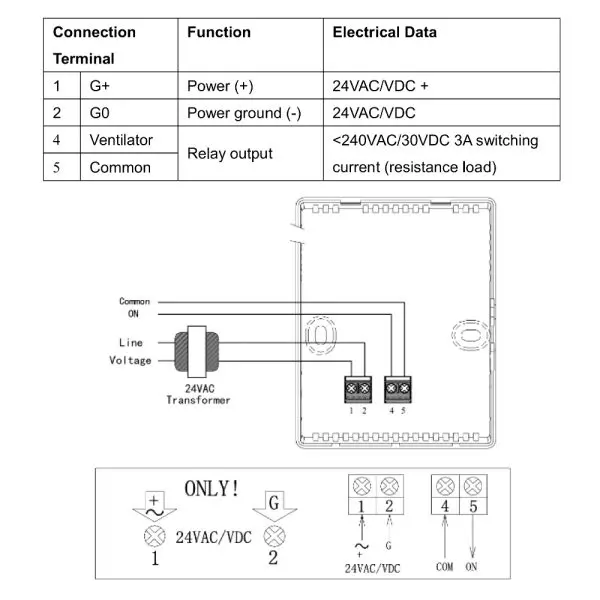

• Relay output: 1 x 2A switch load; Four set points selectable by jumpers
• 6 LED lights:
  • 1 green light on as CO2 measurement≤600ppm
  • 1 and 2 green lights on as CO2 measurement>600ppm and≤800ppm
  • 1 yellow light on as CO2 measurement>800ppm and≤1,200ppm
  • 1 and 2 yellow lights on as CO2 measurement>1,200ppm and≤1,400ppm
  • 1 red light on as CO2 measurement>1,400ppm and≤1,600ppm
  • 1 and 2 red lights on as CO2 measurement>1,600ppm
• Operation conditions: 0℃~50℃ (32~122℉); 0~95%RH, non-condensing
• Storage conditions: 0℃~50℃ (32~122℉); 5~95%RH, non-condensing
• Net weight: 180g

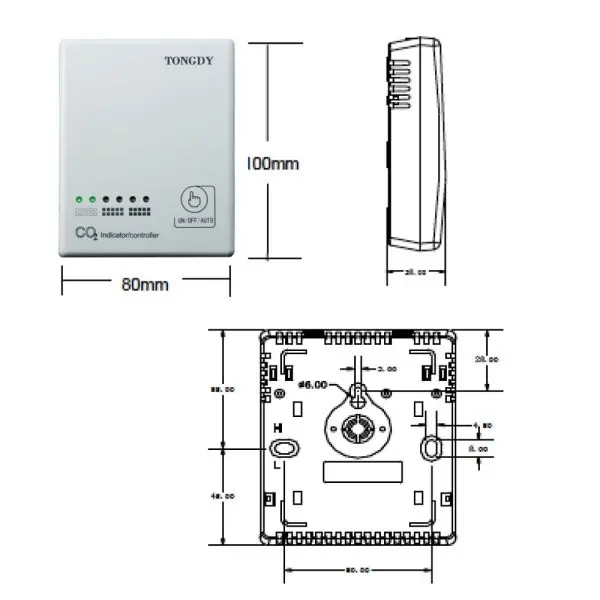

• Dimensions: 100mm×80mm×28mm
• Installation: 65mm x 65mm or 2″ x 4″ wire box
• Standard: CE-Approval

Accessories

• CO2 Indicator Controller
• User Manual
