UbiBot LoRa Smart Sensor
The Smartest Multi-Sensor IoT Device with LCD Display
LoRa Version
~ High-Definition Display • Multi-Parameter Sensing • Flexible Power ~
(Model No.: WS1 Pro-L)
Descriptions
LoRa model: The device can only connect to the LoRa Gateway.
The UbiBot® WS1 Pro-L is a versatile LoRa-enabled environmental monitor designed for field and facility applications. Its 4.4″ high-definition LCD presents multiple sensor readings—temperature, humidity, light levels, and PT100 inputs—in an intuitive format, empowering quick decision-making on site. Dual USB ports allow you to add external sensors or probe interfaces (RS485), making the UbiBot LoRa Smart Sensor WS1 Pro-L a true multi-parameter hub.
Power it with four standard AA batteries for remote setups or with a Micro-USB adapter indoors. Even when connectivity is interrupted, the device logs up to 50,000 readings locally and automatically uploads once a LoRa link is re-established. Speaking of links, its LoRa radio delivers low-power, long-range transmission to any UbiBot LoRa Gateway, supporting networks of up to 100 sensors. Built to withstand –20 °C to 60 °C and high humidity, the WS1 Pro-L is ready for agriculture, smart buildings, warehousing, and beyond. Finally, tap into UbiBot’s IoT platform or your own system via comprehensive APIs, and build a scalable, customizable sensor network in no time.
UbiBot LoRa Smart Sensor – Probe Selection (Optional):
– UbiBot WS1 Pro-L has two Micro USB ports for connecting external probes or USB power-supply.
– Both Micro USB ports can be used for an external DS18B20 temperature probe. Temperature range (-55 to 125 ℃) with 3 or 5 meters round cable.
– One of the Micro USB ports can be used for RS485 temperature and humidity probe.
– We recommend buying Micro USB Splitter Cable Adapter (One Male to Two Female) if you want to use external USB power-supply and two external probes at the same time.
Please note, when the TH30S-B probe connected with our WS1 Pro-L device, only temperature readings can be displayed on the screen.
Features:
- 4.4″ HD LCD Display Instantly view temperature, humidity, light intensity, PT100 readings, and more in crisp, real-time detail.
- Built-In & External Sensor Support Includes high-precision internal temp/humidity and light sensors, plus two USB ports for PT100, RS485, or other external probes.
- Flexible Power Options Run on four AA batteries for field deployment or via Micro-USB (DC 5 V/2 A) for continuous indoor use.
- Robust Offline Storage Locally cache up to 50,000 data points when out of range, then auto-retransmit once connectivity is restored.
- LoRa Wireless Transmission Low-power, long-range communication integrates seamlessly with UbiBot LoRa Gateways—supporting up to 100 nodes per gateway.
- Rugged Environmental Tolerance Rated for –20 °C to 60 °C and 10–90% RH (non-condensing), ideal for agriculture, warehousing, and industrial sites.

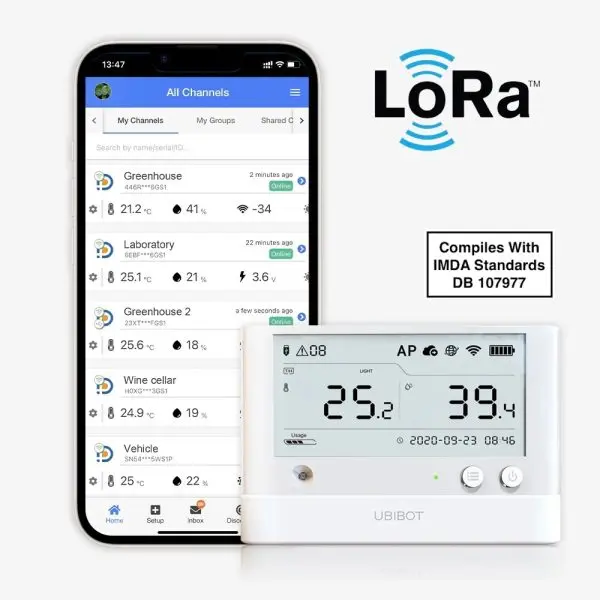

- IoT Ecosystem & APIs Connect to the UbiBot Cloud for real-time dashboards, alerts, and historical data—or integrate into your own platform via open APIs.
Applications:
- Online real-time detecting temperature, humidity and light level
- Greenhouse
- Museum
- Wine Cellar
- Pharmacy
- Horticulture
- Animal Breeding Warehouse
- Server Room
Specification:
- Temperature
- Range: -20℃ to 60℃ (-4℉ to 140℉)
- Typical Accuracy: ±0.2℃
- Humidity
- Range: 10% to 90%, No condensation
- Typical Accuracy: ±2%RH
- Ambient Light Level
- Range: 0.01 to 157k lux
- Accuracy: ±10%
- Storage Capacity: up to 50,000 records
- LoRa Frequency Bands: EU868
- Display: 10.4 × 5 cm (4.4’’ HD LCD)
- Device Interface:
- USB-1 (power / temperature sensor)
- USB-2 (temperature sensor / RS485)
- Wireless Connectivity: LoRa for uplink to gateway (up to 100 nodes)
- Mounting Options: Desktop, wall-mount, or DIN-rail
- Colour: White
- Material: Flame-resistant ABS + Polycarbonate
- Power Source: 4 x AA batteries or Micro USB (5V/2A)

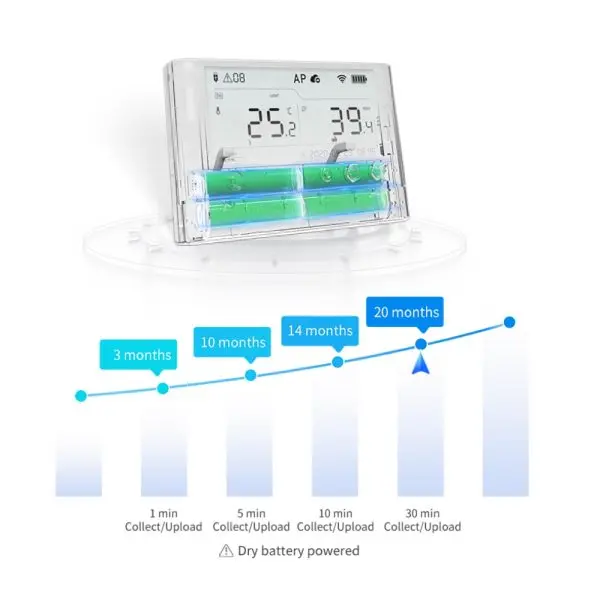

- Battery Life: 3-20 months*
- Dimensions: 12.6 x 8.6 x 2.25 cm
- Weight: 143g ± 3g
*The quoted battery life varies depend on 1 min to 30 min collect / upload data under stable signal conditions with synchronisation and sampling settings.
Package List:
- 1 x UbiBot LoRa Smart Sensor (WS1 Pro-L)
- 1 x manual book
- 1 x USB cable (1m)
- 1 x 5V/2A USB Power Adapter (UK 3-pin plug with Singapore Safety Mark)
FAQ
1. Does the device collect data when the network is unavailable?
Yes. The device continues to monitor the environment even when no network is available. It stores the data in its on-device memory and will sync it when you move it to a LoRa environment. Alternatively, you can manually export the data via our PC Offline Tool.
2. What kind of probe can be connected with the device?The WS1 Pro-L features two on-board USB ports. The lower port supports RS485 interface probes, including the TH30S-B, soil sensor, and PT-100, with a limit of one of each type connected at a time. Additionally, you can connect two temperature probes simultaneously using a USB splitter.
3. Is there any subscription fee for using the platform?
There is no need for a subscription to use the UbiBot Platform.
- Each device comes with the free plan on UbiBot platform that offers 200MB storage and 1GB outbound traffic. The 200MB storage is for lifetime and 1GB of outbound traffic is rotated monthly for each device. But any balance of the outbound traffic will not roll over to the next month. For example, if you have 500 MB outbound traffic unused this month, you still have 1 GB next month.
- The free 200MB storage is enough to store over 2 years amount of data in case your device takes temperature, humidity, and light sensor readings every 10 minutes.
4. How long will the batteries last?
With the sync interval of 1 to 30 minutes, the device has a battery life of 3 to 20 months using 4 AA alkaline batteries.
