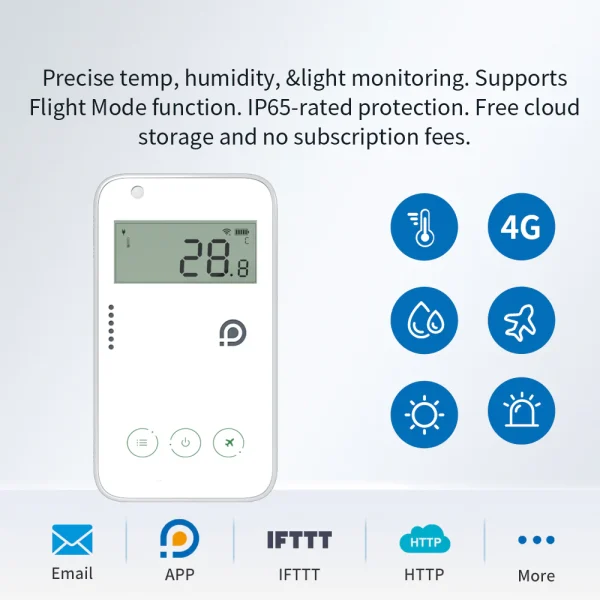

UbiBot WS4-A4G Data Logger
4G Connectivity with Real-Time Temperature & Humidity Monitoring, IP65, Flight Mode, and Cloud Data Logging
with LCD Display
4G SIM Cellular Version
~ Temperature, Humidity & Light Level ~
(Model No.: WS4-A4G)
Descriptions
The UbiBot WS4-A4G data logger is an industrial-grade temperature and humidity monitoring device designed for precise, real-time environmental measurement. Equipped with high-accuracy sensors and built-in 4G cellular connectivity, it enables reliable data transmission without relying on local WiFi networks, making it suitable for remote and mobile deployments.

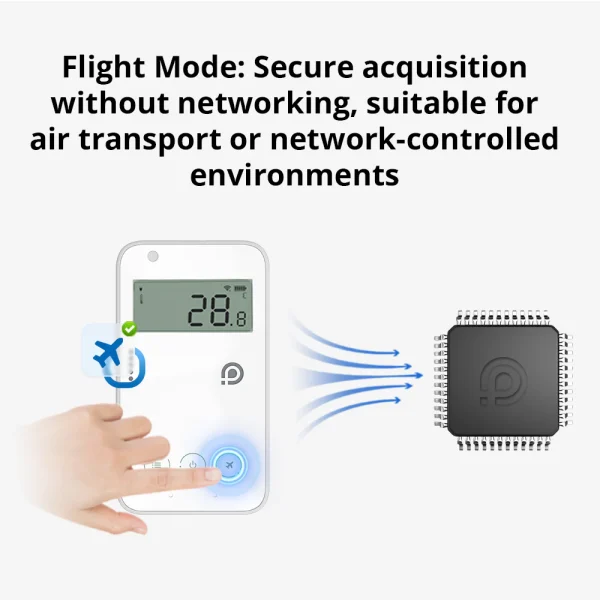

The device features a dedicated Flight Mode, which completely disables wireless communication while continuing to log data locally. This function is particularly valuable for air transport, high-security sites, or environments with strict network access requirements.

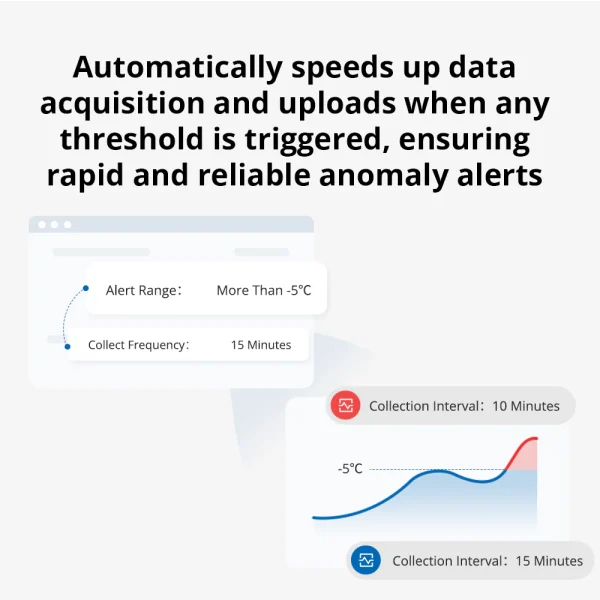

Powered via a Type-C interface and supported by an integrated lithium battery, the UbiBot WS4-A4G data logger offers flexible installation and dependable long-term operation. Its intelligent data acquisition logic automatically adjusts sampling and upload intervals when preset thresholds are exceeded, ensuring timely alerts and rapid response to abnormal conditions.

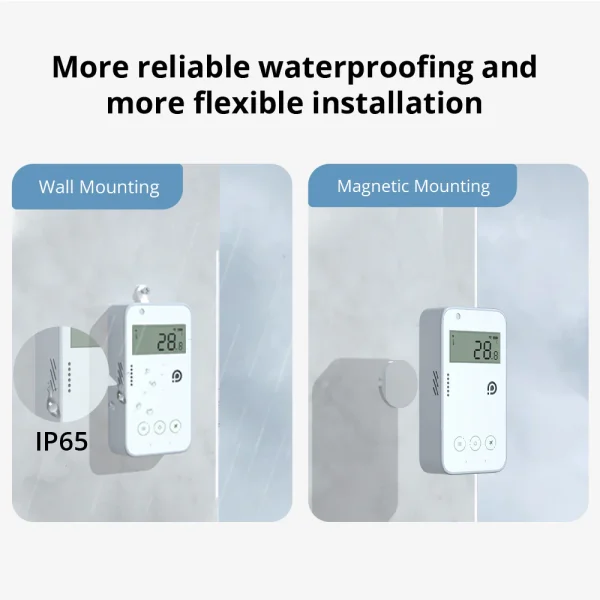

With support for up to 300,000 locally stored records and automatic data backfill, the device maintains continuous monitoring even during network interruptions and synchronizes all stored data once the 4G connection is restored. The IP65-rated enclosure delivers strong resistance to dust and water, enabling stable performance in demanding environments. Multiple mounting options—including desktop placement, wall installation, and accessory-assisted setups—allow easy adaptation across a wide range of applications.

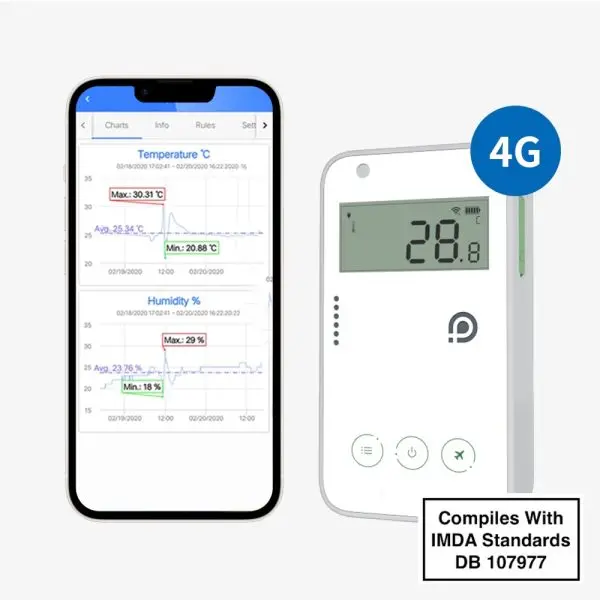

Seamlessly integrated with the UbiBot IoT Cloud Platform, the UbiBot WS4-A4G data logger provides real-time visibility, centralized device management, and multi-sensor data access, supporting efficient, scalable edge-to-cloud monitoring for businesses of any size.
Features
- Easy Setup: Quick integration via UbiBot App or PC tools with 4G mobile network.

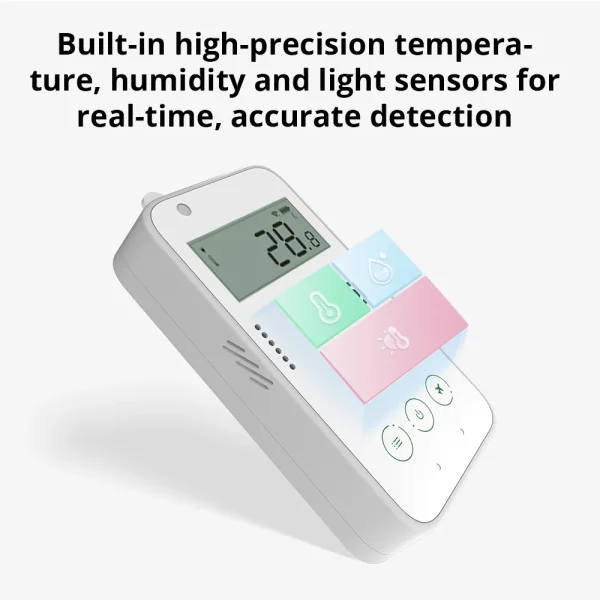

- High-Precision Monitoring: Built-in sensors deliver accurate, real-time temperature and humidity data.
- Flight Mode Safety: Disables wireless communication while maintaining local logging for secure or restricted environments.
- Intelligent Data Management: Dynamic sampling with 300,000 local records and automatic cloud sync after reconnection.
- Rugged IP65 Design: Waterproof, dustproof, and built for reliable operation in demanding conditions.
Applications
- Online real-time detecting temperature, humidity and light level
- Greenhouse
- Museum
- Wine Cellar
- Pharmacy
- Horticulture
- Animal Breeding Warehouse
- Server Room
Specification:
- Temperature
- Range: -20℃ to 60℃ (-4℉ to 140℉)
- Typical Accuracy: ±0.2℃ (0 ~ 60℃)
- Humidity
- Range: 10% to 90%, No condensation
- Typical Accuracy: ±2%RH
- Ambient Light Level
- Range: 0 to 157,000 lux
- Accuracy: ±10% (White LED, 5000K, Ta = 25°C)
- Memory: 300,000 sensor records
- Network connection: Mobile network(4G): LTE-FDD: B1/3/5/8; LTE-TDD: B34/38/39/40/41
- Devices interfaces: Type C (serial communication)
- Screen Size: 57 × 23 mm LCD screen
- Colour: White
- Material: ABS
- Power Supply: Built-in 2500mAh lithium battery / Type-C 5V
- Dimensions: 70 x 125 x 25 mm
- Weight: 175g ± 2g
The WS4 series device has an IP65 protection rating, which effectively prevents dust ingress and resists low-pressure water jets. However, when exposed long-term to harsh outdoor environments (such as continuous rainfall, high humidity, or intense sunlight), there is still a potential risk of moisture or rainwater gradually infiltrating, which could affect the device’s long-term stability and service life.
It is recommended that for outdoor use, the device be installed in a weatherproof outdoor distribution box or other sheltered environment to enhance its reliability and durability in complex climatic conditions.
Package List
- 1 x UbiBot WS4-A4G Data Logger
- 1 x Type-C cable (1m)
FAQ
1. Does the device collect data when the network is unavailable?
Yes. The device continues to monitor the environment even when no network is available. It stores the data in its on-device memory and will sync it when you move it to a 4G environment. Alternatively, you can manually export the data via our PC Offline Tool or WiFi AP.
2. Is there any subscription fee for using the platform?
There is no need for a subscription to use the UbiBot Platform.
- Each device comes with the free plan on UbiBot platform that offers 200MB storage and 1GB outbound traffic. The 200MB storage is for lifetime and 1GB of outbound traffic is rotated monthly for each device. But any balance of the outbound traffic will not roll over to the next month. For example, if you have 500 MB outbound traffic unused this month, you still have 1 GB next month.
- The free 200MB storage is enough to store over 2 years amount of data in case your device takes temperature, humidity, and light sensor readings every 10 minutes.
