UbiBot WS4-A1RS Data Logger
Real-Time Temperature and Humidity Monitoring
with IP65 Protection, Flight Mode, RS485 External Sensor Support, Cloud Data Logging and LCD Display
2.4GHz / 5GHz WIFI Version
~ Temperature, Humidity & Light Level ~
(Model No.: WS4-A1RS)
Descriptions
The UbiBot WS4-A1RS data logger is a versatile environmental monitoring device designed for professional and industrial applications that demand accuracy, flexibility, and reliability. Equipped with high-precision temperature and humidity sensors, it delivers continuous, real-time monitoring of critical environmental conditions. An integrated RS485 interface enables seamless connection to external probes.
Supporting dual-band WiFi (2.4GHz / 5GHz), the WS4-A1RS ensures fast and stable data transmission. For scenarios requiring strict wireless control—such as air transport or secure facilities—the built-in Flight Mode disables all wireless communication while preserving local data logging, ensuring compliance without compromising data integrity.
The device features an intelligent data acquisition system that adapts automatically to environmental changes. When preset thresholds are exceeded, sampling and upload frequency increase, enabling prompt alerts and faster response to anomalies. With up to 300,000 records of onboard storage, the WS4-A1RS continues recording during network interruptions and automatically synchronizes data once connectivity is restored.
Built to withstand challenging conditions, the IP65-rated enclosure provides robust protection against dust and water. Powered via a Type-C interface and an internal lithium battery, the WS4-A1RS supports flexible installation and long-term, unattended operation. Multiple mounting options—including desktop, wall-mounted, and accessory-based installations—make it adaptable to a wide range of environments.

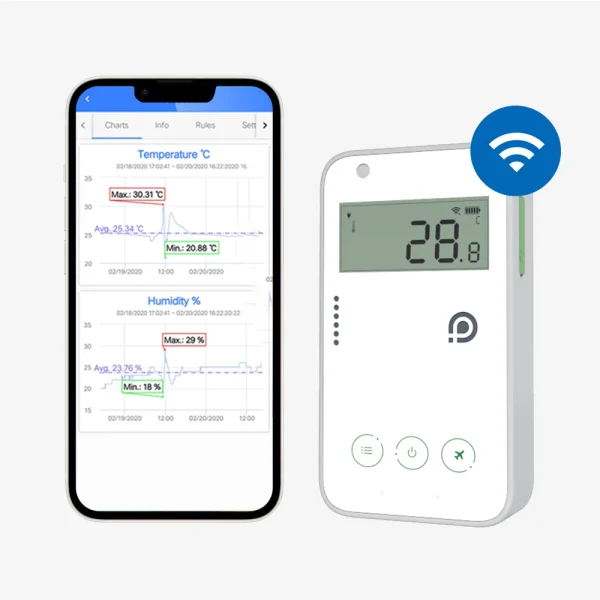

Fully integrated with the UbiBot IoT Cloud Platform, the WS4-A1RS offers real-time visualization, customizable alerts, historical data analysis, and centralized device management. Whether deployed in agriculture, cold storage, laboratories, data centers, or industrial facilities, the WS4-A1RS delivers scalable, reliable monitoring tailored to evolving monitoring needs.
Features
- Easy Setup: Quick integration via UbiBot App or PC tools with 2.4GHz / 5GHz WiFi.
- High-Precision Monitoring: Built-in sensors deliver accurate, real-time temperature and humidity data, with support for external probes.
- Flight Mode Safety: Disables wireless communication while maintaining local logging for secure or restricted environments.
- Intelligent Data Management: Dynamic sampling with 300,000 local records and automatic cloud sync after reconnection.
- Rugged IP65 Design: Waterproof, dustproof, and built for reliable operation in demanding conditions.
- Customizable Alerts: Set real-time notifications via app, email, or IFTTT for critical conditions.
Applications
- Online real-time detecting temperature, humidity and light level
- Greenhouse
- Museum
- Wine Cellar
- Pharmacy
- Horticulture
- Animal Breeding Warehouse
- Server Room
Specification:
- Temperature
- Range: -20℃ to 60℃ (-4℉ to 140℉)
- Typical Accuracy: ±0.2℃ (0 ~ 60℃)
- Humidity
- Range: 10% to 90%, No condensation
- Typical Accuracy: ±2%RH
- Ambient Light Level
- Range: 0 to 157,000 lux
- Accuracy: ±10% (White LED, 5000K, Ta = 25°C)
- Vibration: ±4g

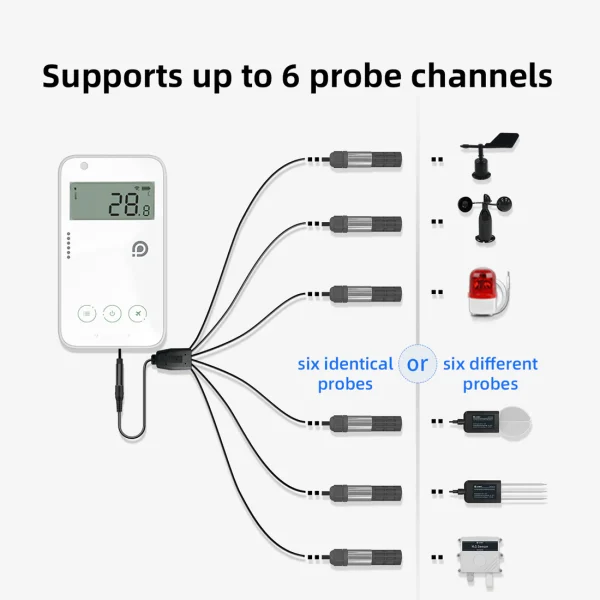

- External Sensors: Air Temperature & Humidity Sensor / Soil Temperature and Moisture Sensor / PT 100 Industrial-grade Temperature Sensor / External CO2 Sensor / Wind Speed Sensor / Soil EC & Temperature & Moisture Sensor / Soil PH Sensor / Ethylene & Oxygen Sensor / Atmospheric Pressure Sensor / Total Solar Radiation Sensor / External Light Sensor / Soil NPK Sensor
- Accessories: RS485 Light and Siren Alarm; 1-2 Splitter
- Memory: 300,000 sensor records
- WiFi Specifications: 2.4GHz and 5GHz
- Devices interfaces: Type C (serial communication)
- Screen Size: 57 × 23 mm LCD screen
- Colour: White
- Material: ABS
- Power Supply: Built-in 2500mAh lithium battery / Type-C 5V
- Dimensions: 70 x 125 x 25 mm
- Weight: 175g ± 2g
- Operation Environment: Temperature: -20°C ~ 60°C; Humidity: 10% ~ 90% (non-condensing)
The WS4 series device has an IP65 protection rating, which effectively prevents dust ingress and resists low-pressure water jets. However, when exposed long-term to harsh outdoor environments (such as continuous rainfall, high humidity, or intense sunlight), there is still a potential risk of moisture or rainwater gradually infiltrating, which could affect the device’s long-term stability and service life.
It is recommended that for outdoor use, the device be installed in a weatherproof outdoor distribution box or other sheltered environment to enhance its reliability and durability in complex climatic conditions.
Package List
- 1 x UbiBot WS4-A1RS Data Logger
- 1 x Type-C cable (1m)
FAQ
1. Does the device collect data when the network is unavailable?
Yes. The device continues to monitor the environment even when no network is available. It stores the data in its on-device memory and will sync it when you move it to a WiFi environment. Alternatively, you can manually export the data via our PC Offline Tool or WiFi AP.
2. How to reset the device when my WiFi router password is changed?
Repeat the device setup steps and follow the on-screen instructions. Note: you need to type in the new WiFi password. All your data are kept unchanged when you changed the WiFi password or even you move the device to a new location.
3. Is there any subscription fee for using the platform?
There is no need for a subscription to use the UbiBot Platform.
- Each device comes with the free plan on UbiBot platform that offers 200MB storage and 1GB outbound traffic. The 200MB storage is for lifetime and 1GB of outbound traffic is rotated monthly for each device. But any balance of the outbound traffic will not roll over to the next month. For example, if you have 500 MB outbound traffic unused this month, you still have 1 GB next month.
- The free 200MB storage is enough to store over 2 years amount of data in case your device takes temperature, humidity, and light sensor readings every 10 minutes.
