Milesight
Industrial LoRaWAN Gateway
using LoRaWAN Technology
(Model No. UG56-915M)

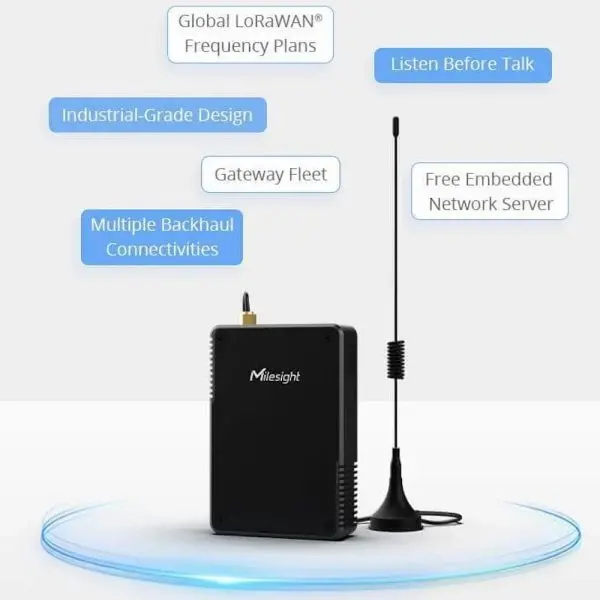

Enable All-Round Connectivity with the High-Performance 8-channel LoRaWAN® Gateway UG56
The Milesight Industrial LoRaWAN Gateway UG56 offers reliable connectivity for industrial applications, featuring a compact, industrial-grade design. It provides seamless connectivity via Ethernet, cellular, and Wi-Fi, making it a versatile solution for various networking needs.
Exceptional Obstacle Penetration
The UG56 excels in penetrating buildings, achieving coverage through three floors and extending its reach up to 2 km in urban areas and up to 15 km in less congested rural locations.
Engineered for Extensive IoT Connectivity
Equipped with the Semtech SX1302 LoRa chip, the UG56 gateway supports connections with over 2000 LoRaWAN® nodes across 8 channels, powered by a robust quad-core CPU.
Designed for Optimal Coverage and Convenient Installation
Its compact design allows the UG56 to fit into small spaces, with options for magnetic or fiberglass antennas (optional) for enhanced signal reach and coverage.
Features:
- Industrial-Grade Design with Compact Size: Ensures durability and easy installation.
- Multi-Connectivity Options: Stay Connected via Ethernet, cellular, and Wi-Fi
- Gateway Fleet: Provides comprehensive networking solutions
- Listen Before Talk (LBT): Maintains downlink data integrity
- Advanced Chipset: Equipped with Semtech SX1302 Chip and a high-performance quad-core CPU
- Embedded Network Server: Compatible with TTN, ChirpStack, Everynet, Senet, and more.

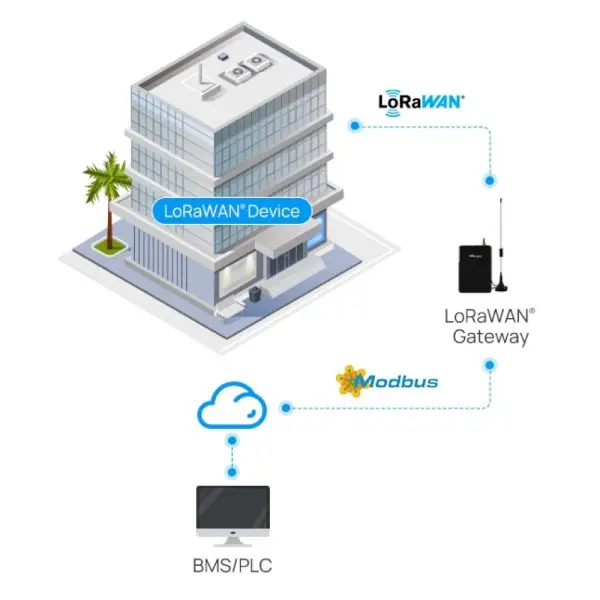

- BACnet/IP Support: Seamlessly integrates into existing Building Management Systems (BMS)
- Development Platform Support: Compatible with Auto-P, Milesight Development Platform, Chirpstack Gateway Bridge V4, and the latest version of Node-RED.
- WiFi 2.4G: supports default password protection
LoRaWAN Specifications:
- Chipset: SX1302, 8 Channels (Half-duplex)
- Antenna: 1 x 50 SMA Connector (Connector PIN: SMA Female)
- Frequency: AS923
- Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
Connectivity
- Ethernet: 1 x RJ45 PoE PD Port, 10/100/1000 Base-T (IEEE 802.3)
- Wi-Fi: IEEE 802.11b/g/n, 2.4 GHz
Hardware
- CPU: Quad.core 1.3 GHz, 64.bit ARM Cortex.A35
- Power Supply: 1 × 802.3af Standard PoE Input, 5V via Type-C Port
Physical Characteristics
- Ingress Protection: IP30
- Dimension: 110 x 75 x 24 mm (4.33 x 2.95 x 0.94 in)
- Installation: Desktop or wall mounting
Package includes:
- 1 x UG56-915M Industrial LoRaWAN Gateway
- 1 x LoRa Antenna
1 Years Manufacturer Warranty – 30 Days One-to-One Exchange
